3DRap Feeling PRO [Transforms your simulator into a Dynamic Platform] (PC, SimHUB)

3DRap Feeling PRO [Transforms your simulator into a Dynamic Platform] (PC, SimHUB)

3DRap Feeling PRO Kit – Customize Your Simracing Experience to the Fullest! Full compatibility from SimHub 9.5.4 onwards.

€169,00 EUR
€169,00 EUR
Sale Sold out

INT005_KT1

Rumbles Bundle (Description below)
Wind Generators

ADD Rumbles Pedal Motors to this Bundle and you will receive a 4,90 € DISCOUNT on each motor you add.

Compatibility: . System: PC, PlayStation 5, Xbox, and PlayStation 4.

Download SimHUB Profiles

Additional Information

Rumble Motors for pedals are not included in the bundles, you need to add them separately by choosing the compatibility with your pedalboard from the list.

View full details

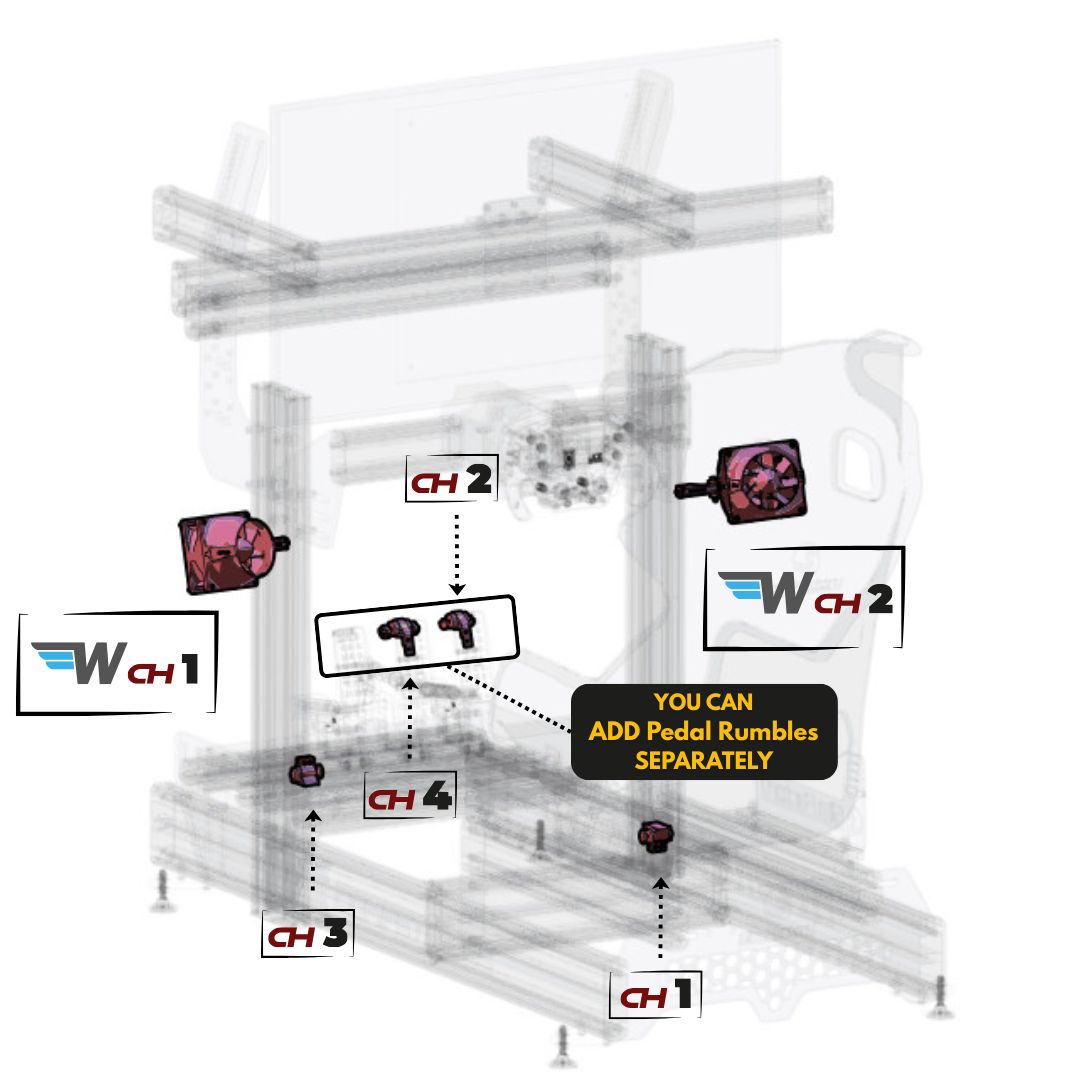

Bundles Configuration

  • AXLES Basic

    • 2x Universal Rumble Motors
    • 2x Cable extension
    • Calibration weights
    • Feeling PRO Electronics
    • USB Cable
    • Power supply [3A | 12Vdc] (EU Plug)

    Description:

    This setup is dedicated to vehicle dynamics enthusiasts who like to
    gradually approach the rumble engine ecosystem. In this case, it is
    possible to position two universal rumbles at will on the station thanks to the extensions provided. This gives the opportunity to perceive the vibrations caused by the tire-road interaction coming from the car chassis, increasing the simulation experience and the perception of the vehicle.

    Effects:

    • Gear Shift: the effect reproduces the “gear-kick” typical of sequential gearbox transmissions.
    • Road Vibration: the effect reproduces the vibrations coming from the movements of the body due to the roughness of the road.
    • Wheels Lock and Slip: the effect reproduces the vibrations caused by the locking and slipping of tyres working at the limit of grip.

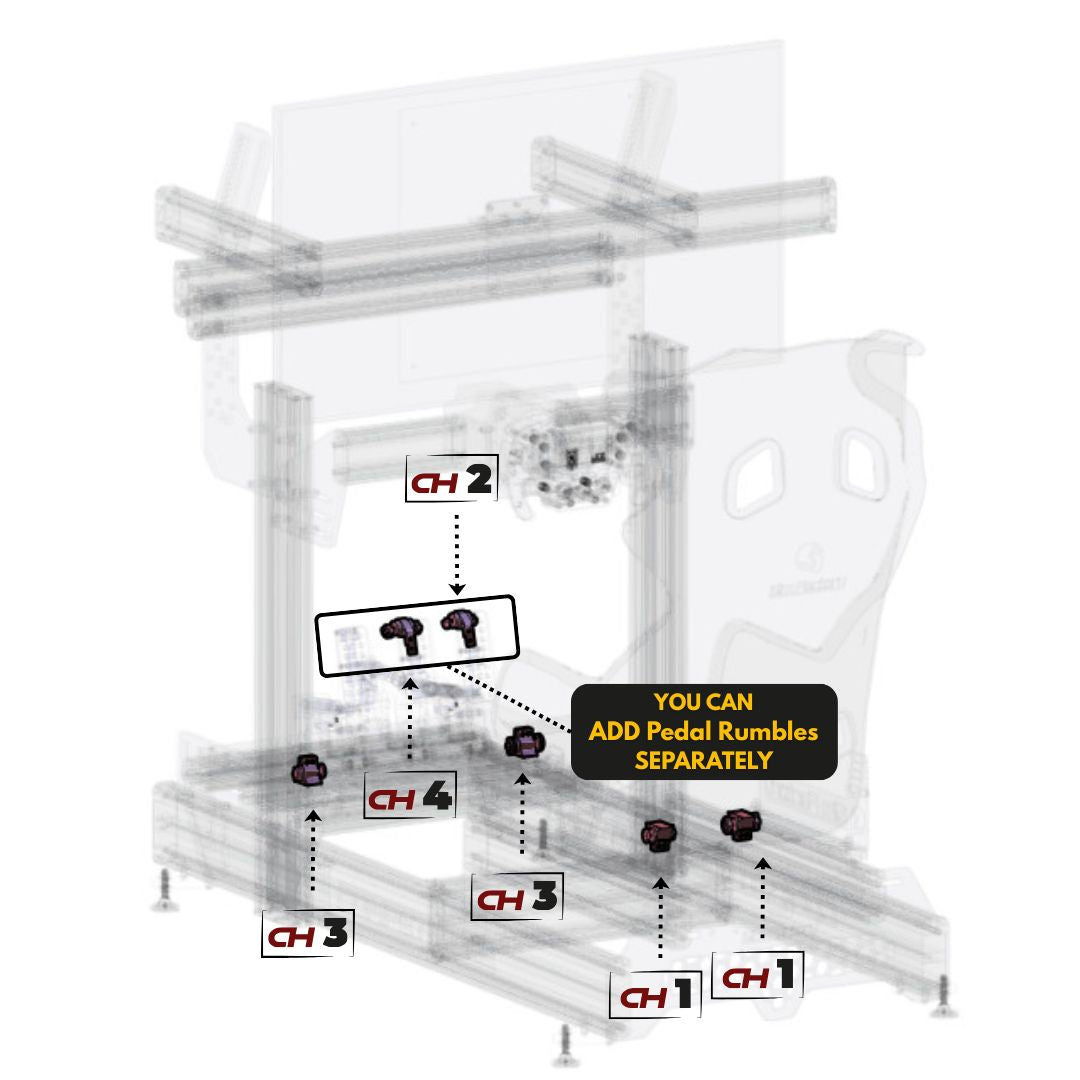

  • AXLES Advanced

    • 4x Universal Rumble Motors
    • 2x Cable extension
    • 2x Y Cable
    • Calibration weights
    • Feeling PRO Electronics
    • USB Cable
    • Power supply [8A | 12Vdc] (EU Plug)

    Description:

    This setup is dedicated to lovers of vehicle dynamics who love the
    haptic effect without compromise. The setup consists of two redundant pairs of rumble motors connected to the CH1 and CH3 motors. The rumbles installed on the back allow to replicate, in addition to the road effects, the gear kick effect of the gear change, typical in cars equipped with sequential gearbox. The splitting of the axles allows to amplify the feeling deriving from the load transfers between the two axles, giving the opportunity to manage the grip of the tires in all operating conditions even beyond the grip limit.

    Effects:

    • Gear Shift: the effect reproduces the “gear-kick” typical of sequential gearbox transmissions.
    • Road Vibration: the effect reproduces the vibrations coming from the movements of the body due to the roughness of the road.
    • Wheels Lock and Slip: the effect reproduces the vibrations caused by the locking and slipping of tyres working at the limit of grip.

  • AXLES Basic + PEDALS (Recommended)

    • 2x Universal Rumble Motors
    • 2x (Recommended) Pedals Rumble Motors
    • 2x Cable extension
    • Calibration weights
    • Feeling PRO Electronics
    • USB Cable
    • Power supply [3A | 12Vdc] (EU Plug)

    Description:

    This setup is dedicated to those who want to approach the 3DRap Feeling Pro ecosystem with simplicity but without giving up any effects. The setup allows you to use the rumble pedals engines dedicated to the ABS and traction control effects directly on the pedal board, furthermore there are two universal rumbles that can be positioned as desired on the station for the effects related to the tire-road interaction and for generic effects related to the vehicle dynamics.

    Effects:

    • ABS: the effect reproduces the vibration caused by the intervention of the ABS system during braking.
    • Gear Shift: the effect reproduces the “gear-kick” typical of sequential gearbox transmissions.
    • Road Vibration: the effect reproduces the vibrations coming from the movements of the body due to the roughness of the road.
    • TC Active: the effect reproduces a vibration proportional to the intervention of the traction control.
    • Wheels Lock and Slip: the effect reproduces the vibrations caused by the locking and slipping of tyres working at the limit of grip.

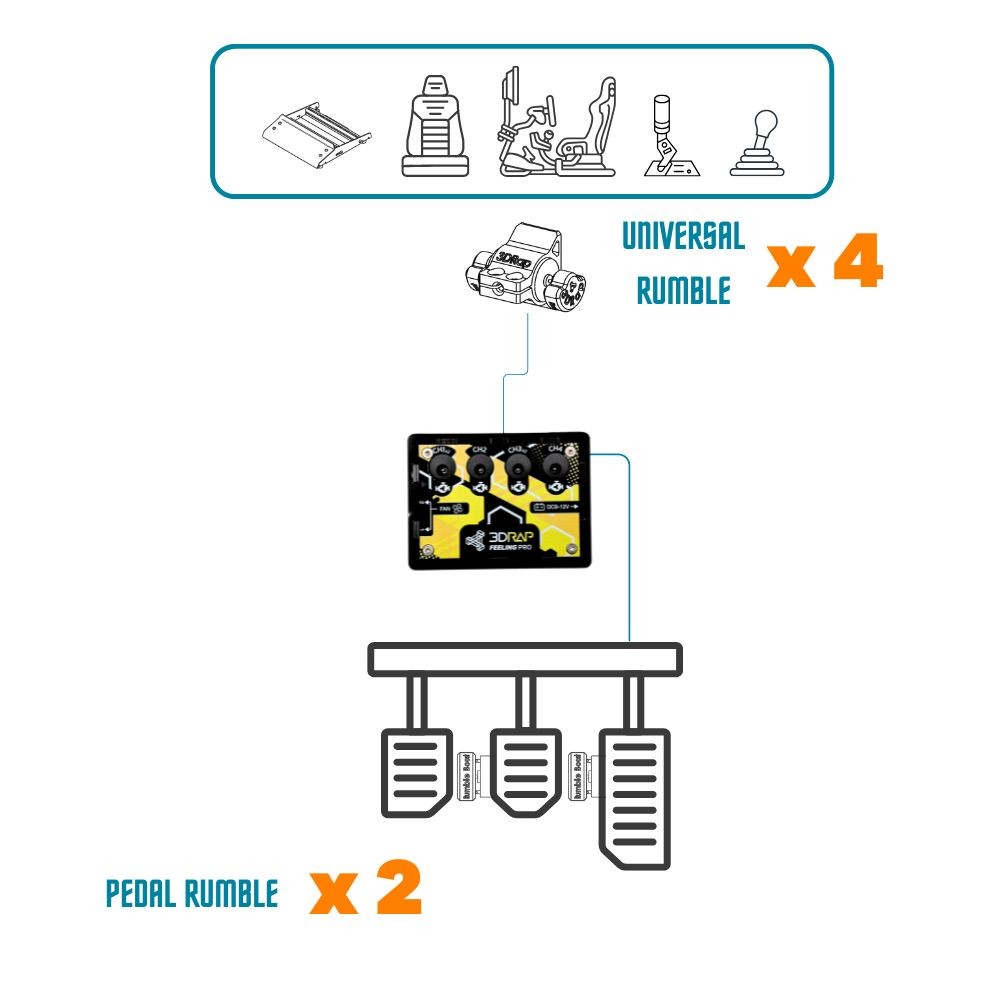

  • AXLES Advanced + PEDALS (Recommended)

    • 4x Universal Rumble Motors
    • 2x (Recommended) Pedals Rumble Motors
    • 2x Cable extension
    • 2x Y Cable
    • Calibration weights
    • Feeling PRO Electronics
    • USB Cable
    • Power supply [8A | 12Vdc] (EU Plug)

    Description:

    This setup is dedicated to lovers of highly immersive and uncompromising haptic feelings. Thanks to the presence of pedal motors and four universal motors that can be positioned as desired, this setup lets you appreciate the feeling of driving made of load transfers between the front and rear axles. The split channels CH1 and CH3 allow you to intensify the effects of vibrations coming from each axle. The
    channels CH2 and CH4 are dedicated to the effects of ABS and traction control which are essential to recognize the limit of grip of the tires in all operating conditions.

    Effects:

    • ABS: the effect reproduces the vibration caused by the intervention of the ABS system during braking.
    • Gear Shift: the effect reproduces the “gear-kick” typical of sequential gearbox transmissions.
    • Road Vibration: the effect reproduces the vibrations coming from the movements of the body due to the roughness of the road.
    • TC Active: the effect reproduces a vibration proportional to the intervention of the traction control.
    • Wheels Lock and Slip: the effect reproduces the vibrations caused by the locking and slipping of tyres working at the limit of grip.

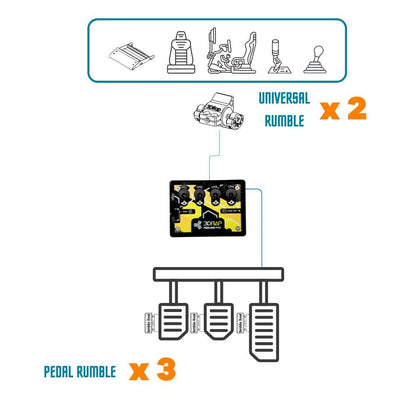

  • PEDALS Only

    • Add 1x, 2x, 3x (Recommended) Pedals Rumble Motors
    • Calibration weights
    • Feeling PRO Electronics
    • USB Cable
    • Power supply [3A | 12Vdc] (EU Plug)

    Description:

    This setup is dedicated to lovers of haptic feeling without compromise, transforming the passive pedal board into a professional peripheral that reproduces the effects of ABS, traction control and the generic effects deriving from the dynamics of the vehicle thanks to the third rumble installed on the clutch pedal. In this way it will be possible to accurately recognize the grip limit of each car both when braking when entering a curve and accelerating when exiting it, also perceiving the feeling of the road effects. This configuration makes an immersive experience possible even for those who do not have the opportunity to install the rumble on the station.

    Effects:

    • ABS: the effect reproduces the vibration caused by the intervention of the ABS system during braking.
    • Gear Shift: the effect reproduces the “gear-kick” typical of sequential gearbox transmissions.
    • Road Vibration: the effect reproduces the vibrations coming from the movements of the body due to the roughness of the road.
    • TC Active: the effect reproduces a vibration proportional to the intervention of the traction control.
    • Wheels Lock and Slip: the effect reproduces the vibrations caused by the locking and slipping of tyres working at the limit of grip.

  • WIND Only

    • 2x Wind Generators (High Flow or High Speed)
    • Feeling PRO Electronics
    • USB Cable
    • Power supply [3A | 12Vdc] (EU Plug)

    Description:

    This setup is dedicated to simulating the wind effect to reproduce
    the air flow that hits the driver. The cars it is inspired by are Endurance models, convertibles or open-wheel cars. The first ones in particular are equipped with characteristic cooling ducts located in correspondence with the cockpit. They have the purpose of ventilating the passenger compartment, preserving driving comfort during the
    endurance session.

    Effects:

    • Wind: wind generators have the purpose of
      ventilating the passenger compartment, preserving driving comfort during
      the endurance session.

Suggested SimHUB Setup

  • AXLES Basic

    • CHANNEL 1 (CH1x2): Empty.
    • CHANNEL 2 (CH2):Throttle Rumble | TC Active [LOW].
    • CHANNEL 3 (CH3x2):Empty.
    • CHANNEL 4 (CH4):Brake Rumble | ABS [HIGH].

    Legend: Electronics CHANNEL | Rumble Motor Type | SimHUB Effect [Intensity]

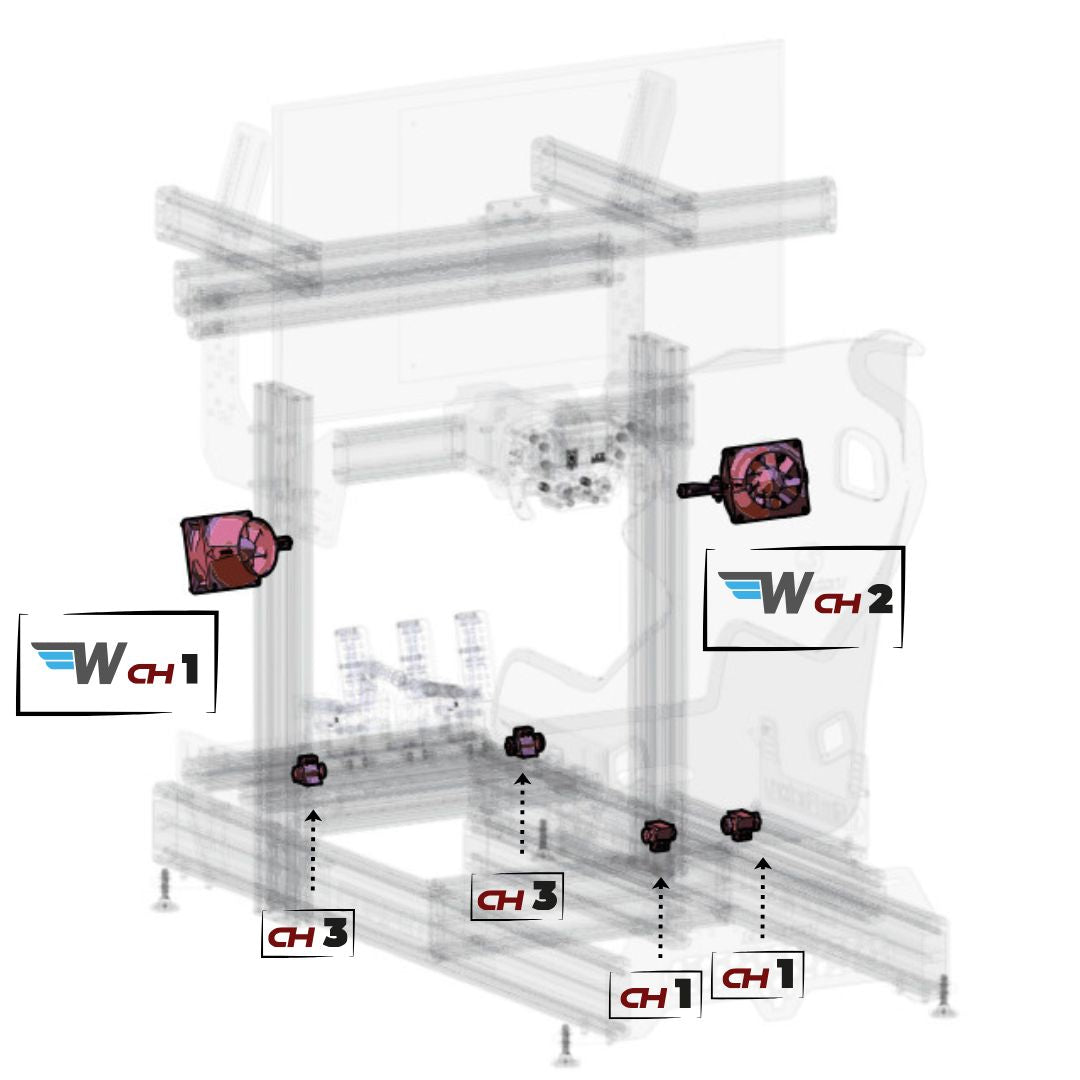

  • AXLES Advanced

    • CHANNEL 1 (CH1x2): Universal Rumble | Gear Shift [MID], Road Vibration REAR wheels [MID], Wheels lock and slip REAR wheels [MID].
    • CHANNEL 2 (CH2): Empty.
    • CHANNEL 3 (CH3x2): Universal Rumble | Gear Shift [MID], Road Vibration FRONT wheels [MID], Wheels lock and slip FRONT wheels [MID].
    • CHANNEL 4 (CH4): Empty.

    Legend: Electronics CHANNEL | Rumble Motor Type | SimHUB Effect [Intensity]

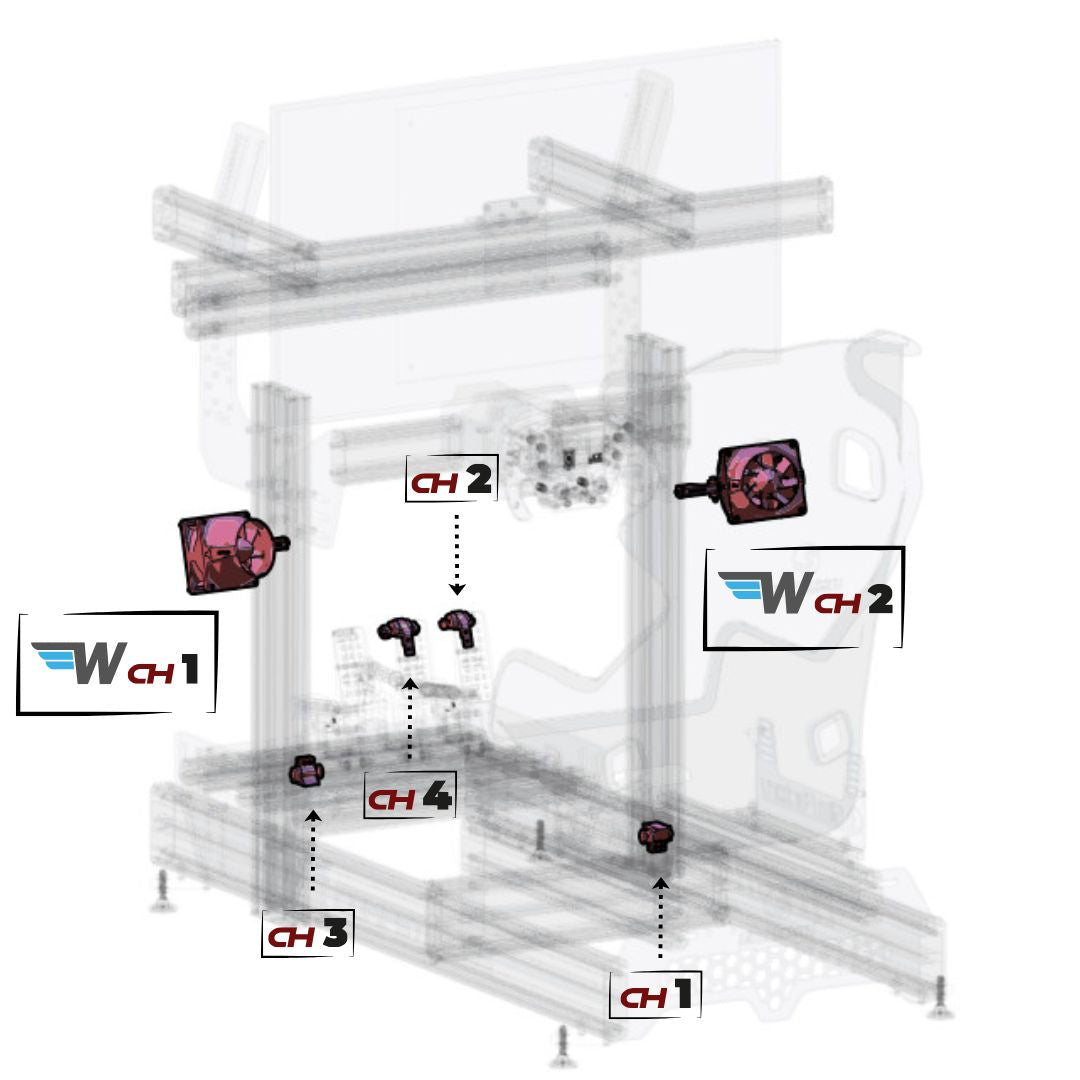

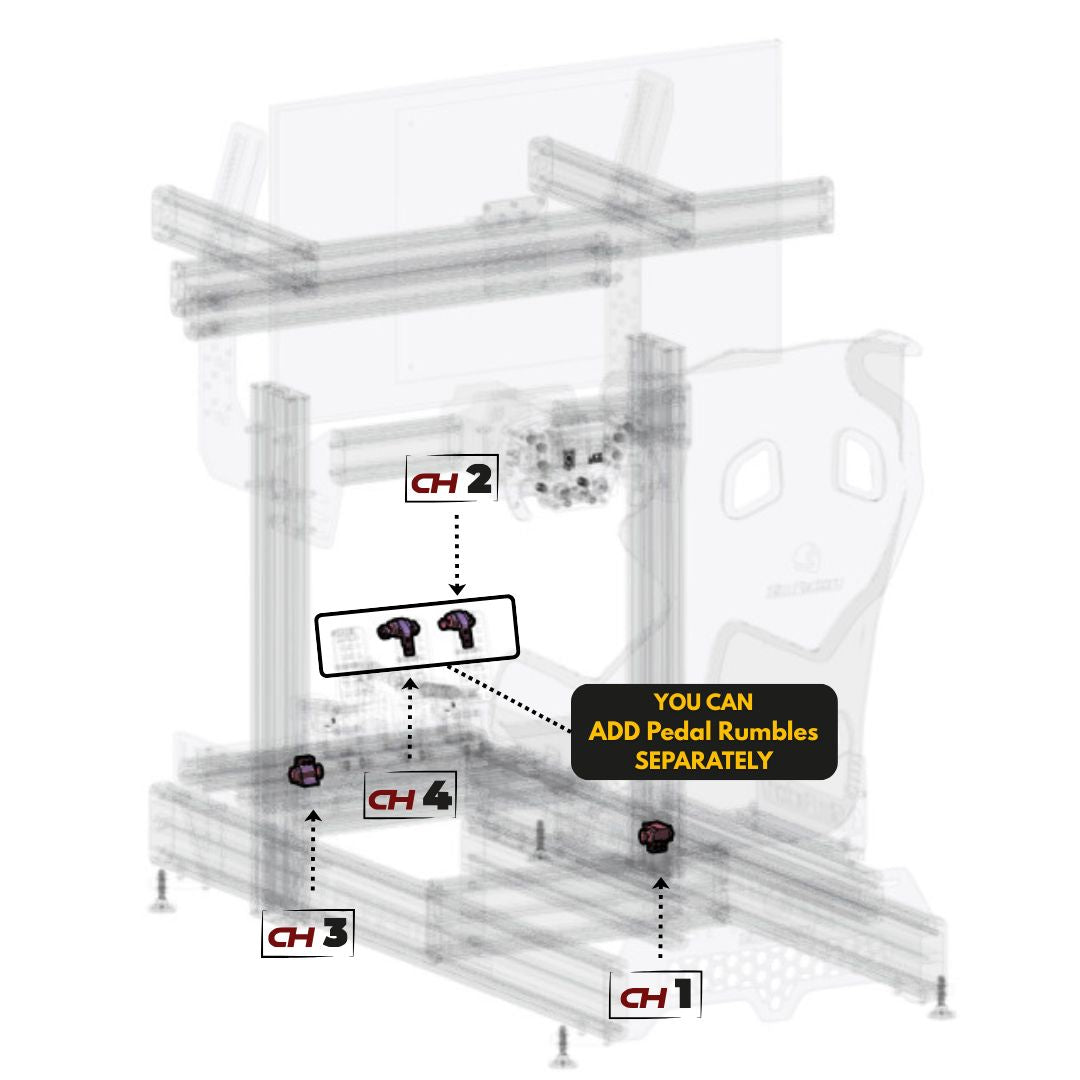

  • AXLES Basic + PEDALS

    • CHANNEL 1 (CH1x2): Universal Rumble | Gear Shift [MID], Road Vibration All wheels [MID], Wheels lock and slip All wheels [MID].
    • CHANNEL 2 (CH2): Throttle Rumble | TC Active [LOW].
    • CHANNEL 3 (CH3x2): Universal Rumble | Gear Shift [MID], Road Vibration All wheels [MID], Wheels lock and slip All wheels [MID].
    • CHANNEL 4 (CH4): Brake Rumble | ABS [HIGH].

    Legend: Electronics CHANNEL | Rumble Motor Type | SimHUB Effect [Intensity]

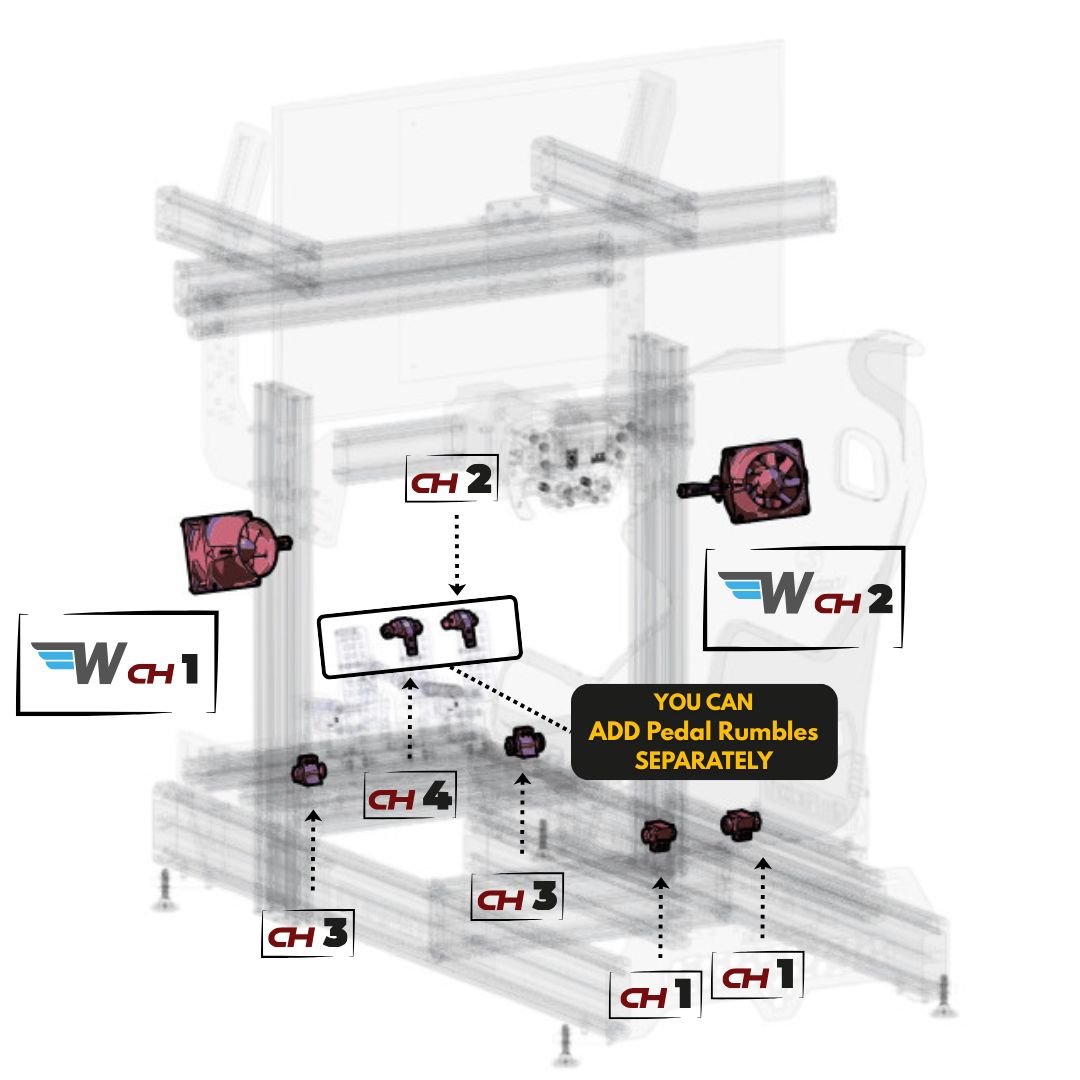

  • AXLES Advanced + PEDALS

    • CHANNEL 1 (CH1x2): Universal Rumble | Gear Shift [MID], Road Vibration REAR wheels [MID], Wheels lock and slip REAR wheels [MID].
    • CHANNEL 2 (CH2): Throttle Rumble | TC Active [LOW].
    • CHANNEL 3 (CH3x2): Universal Rumble | Gear Shift [MID], Road Vibration FRONT wheels [MID], Wheels lock and slip FRONT wheels [MID].
    • CHANNEL 4 (CH4): Brake Rumble | ABS [HIGH].

    Legend: Electronics CHANNEL | Rumble Motor Type | SimHUB Effect [Intensity]

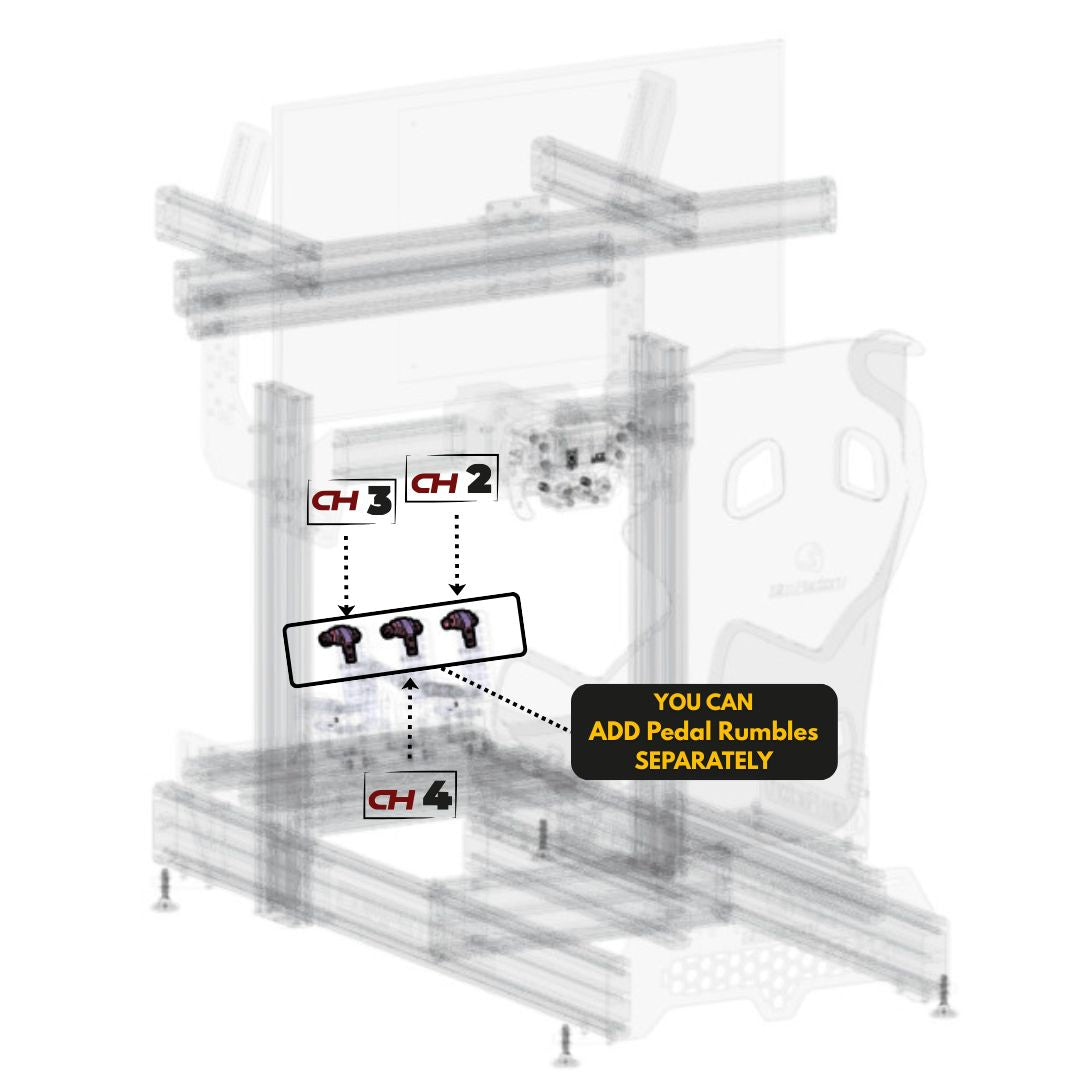

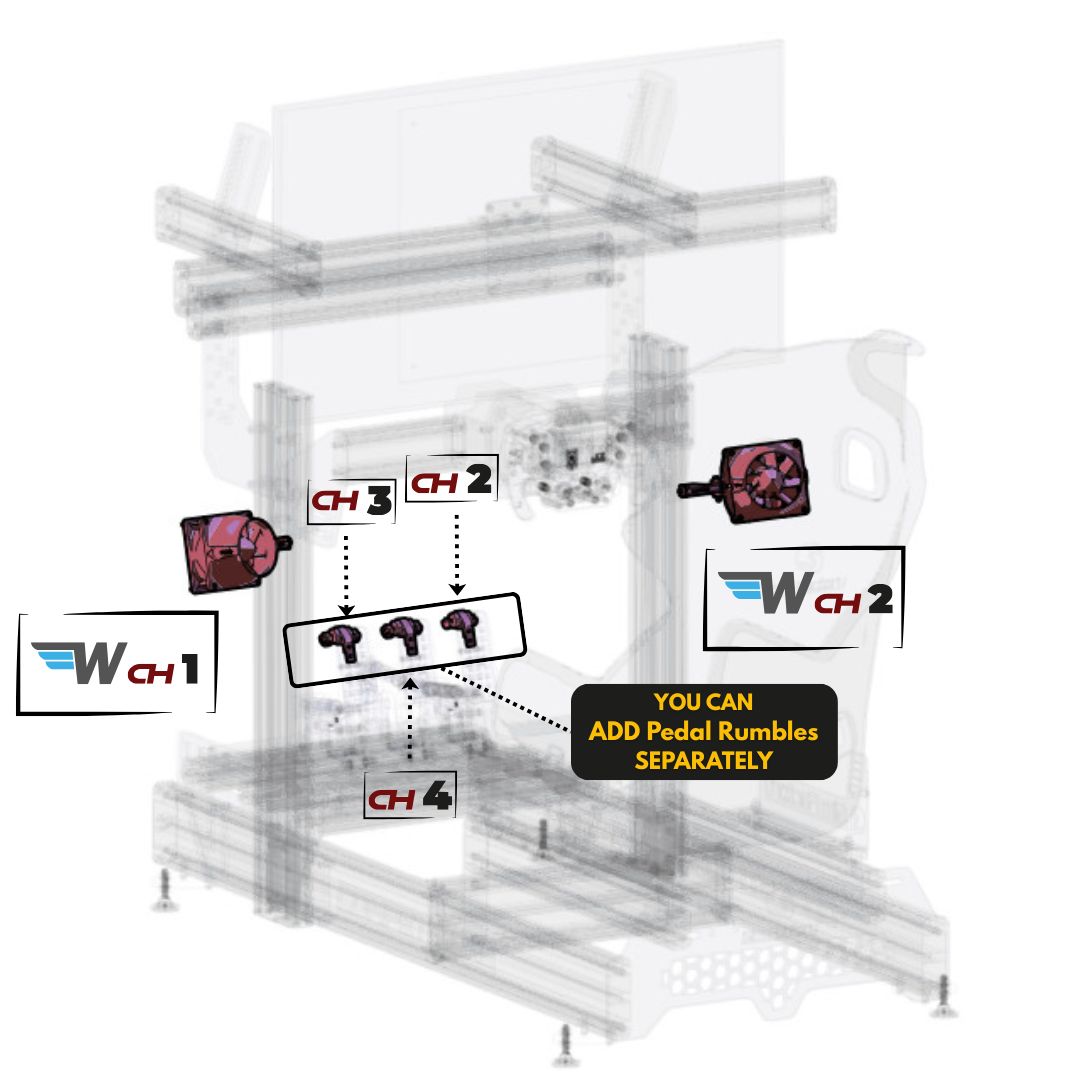

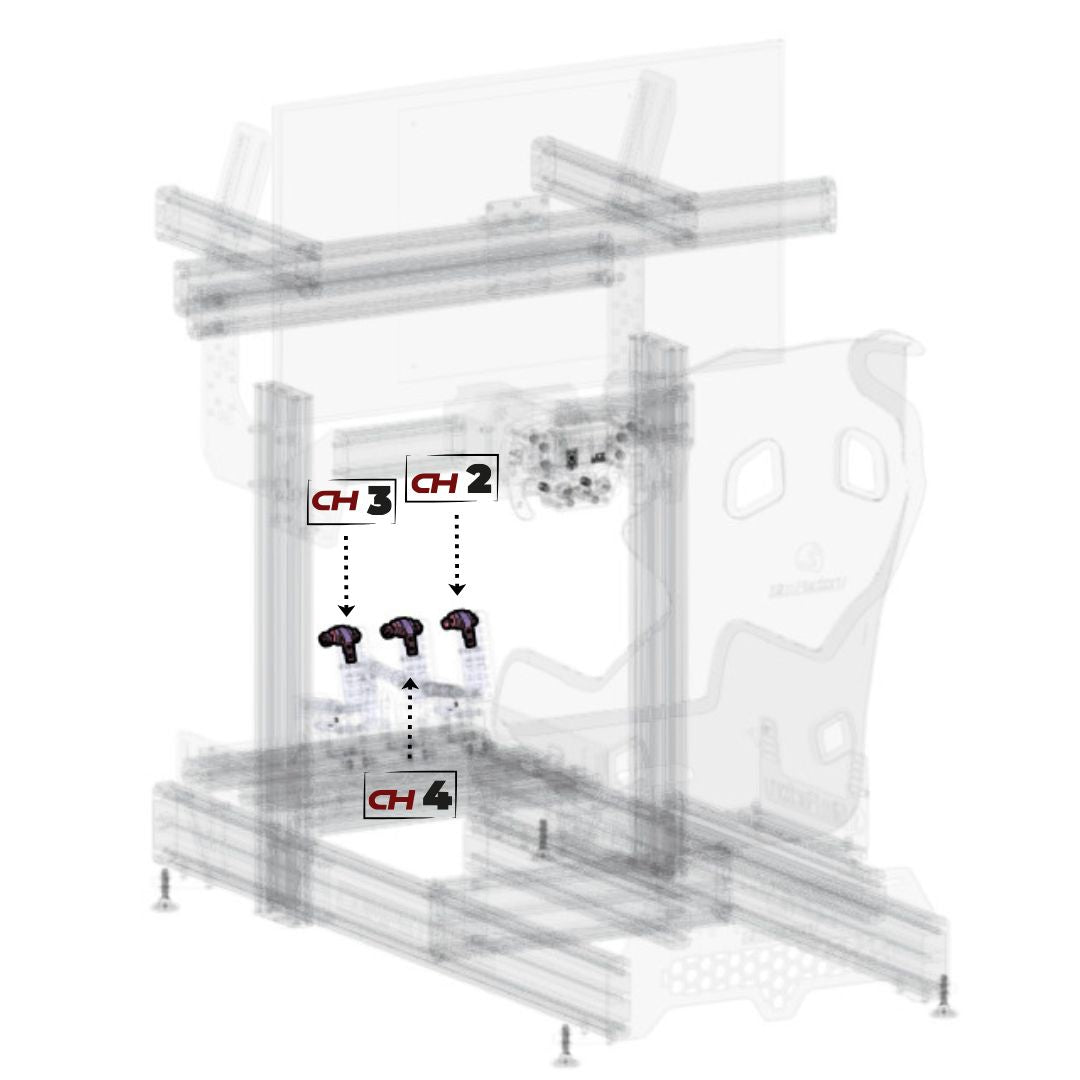

  • PEDALS Only

    • CHANNEL 1 (CH1x2): Empty.
    • CHANNEL 2 (CH2): Throttle Rumble | TC Active [LOW].
    • CHANNEL 3 (CH3x2): Clutch Rumble | Gear Shift [MID], Road Vibration FRONT wheels [MID], Wheels lock and slip FRONT wheels [MID].
    • CHANNEL 4 (CH4): Brake Rumble | ABS [HIGH].

    Legend: Electronics CHANNEL | Rumble Motor Type | SimHUB Effect [Intensity]

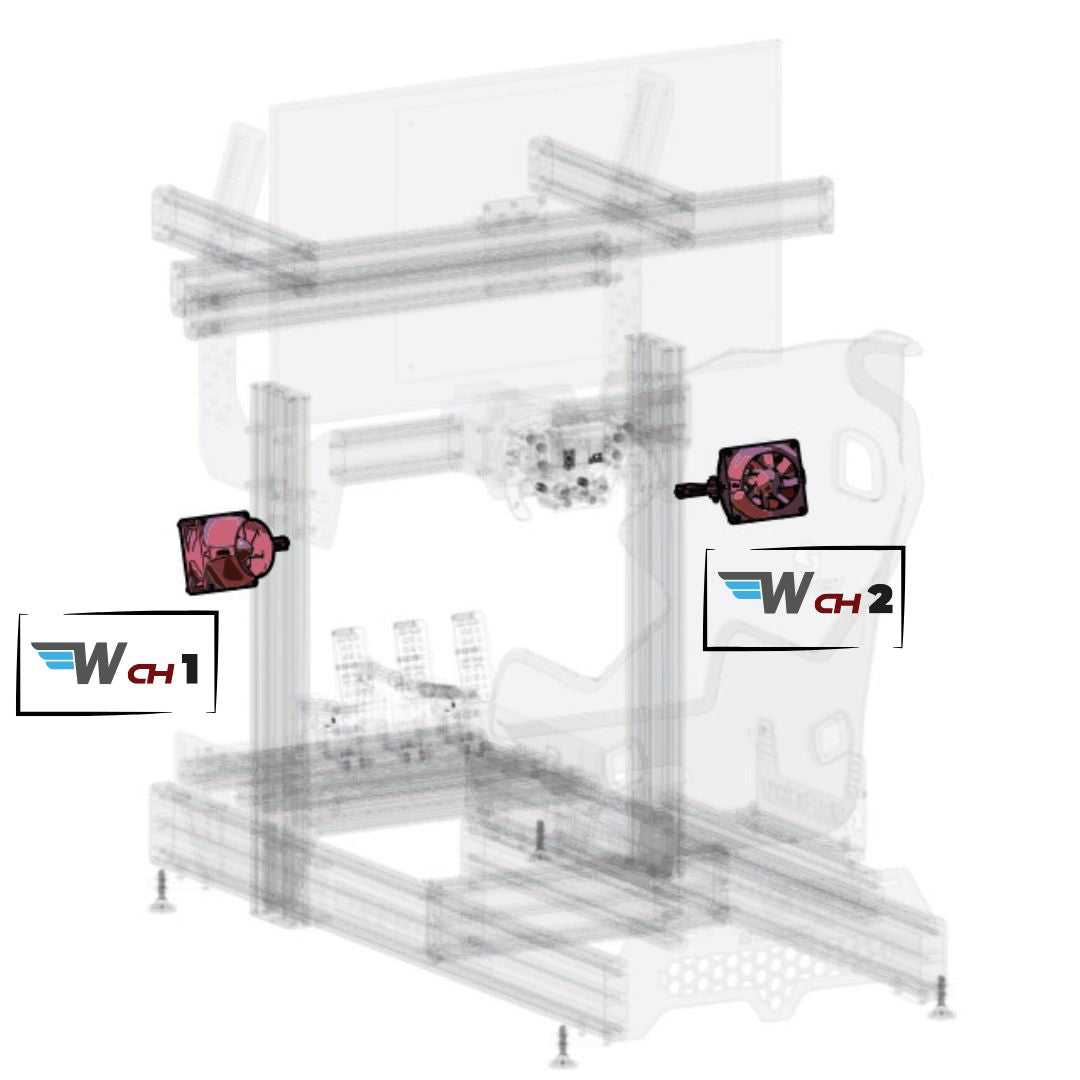

  • WIND Only

    • WIND CHANNEL 1 (FAN1): Wind Generator.
    • WIND CHANNEL 2 (FAN2): Wind Generator.

    Legend: Electronics CHANNEL | Motor Type

  • 6x 12-Volt Rumble Motors: each kit supports four powerful 12V rumble motors designed to provide precise and engaging tactile feedback. Feel every curve, every bump on the track, and every brake with an unparalleled sensation.
  • Wind Simulator: 3DRap offers the opportunity to simulate the effect of the wind for open wheel cars, spider cars and cars with cooling vents LMP1 and GT style in endurance configuration. We have selected high-performance fans to ensure deep immersion.

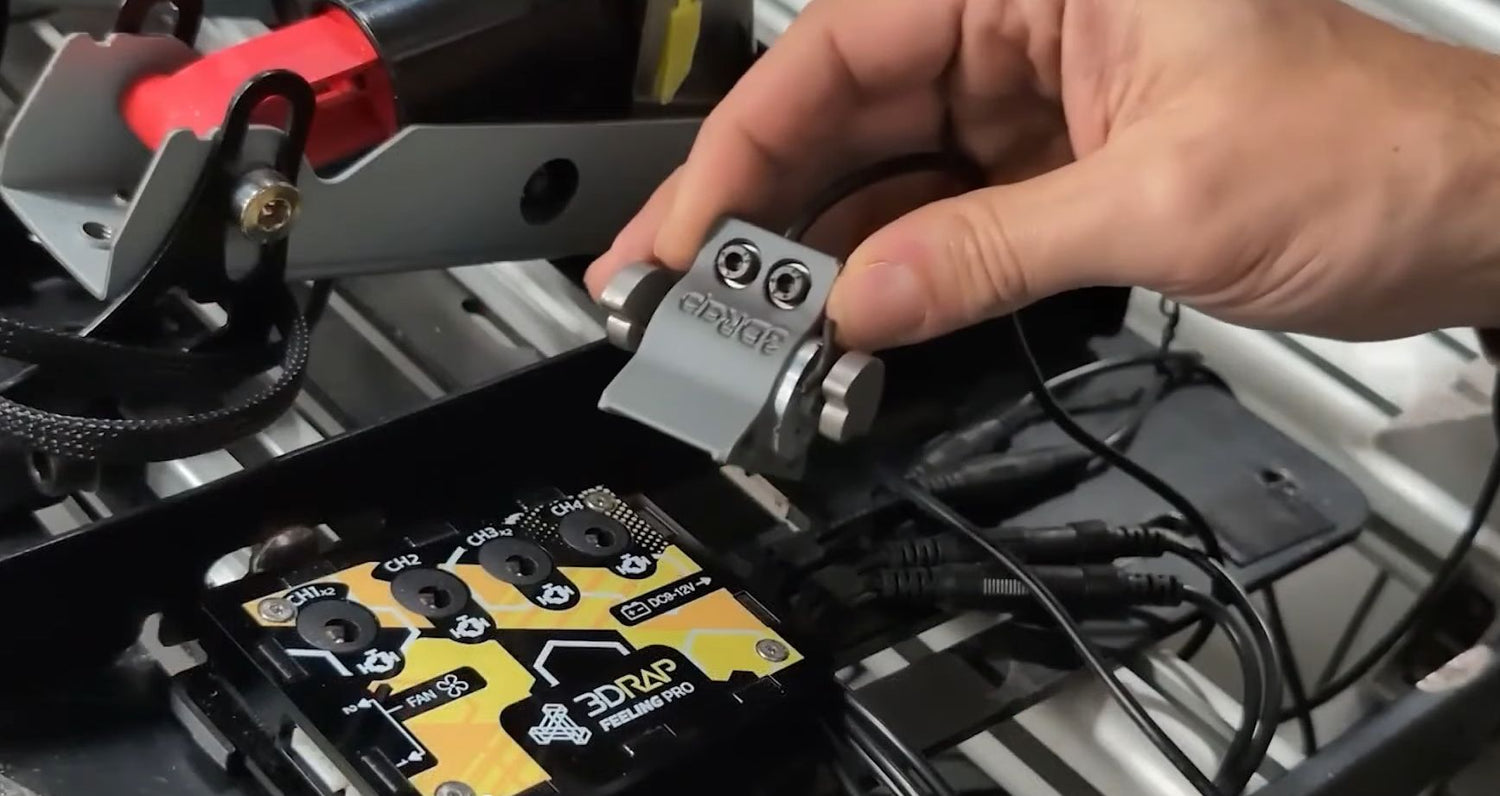

  • Advanced Electronic Board with Customizable Channels: The proprietary electronic board allows you to customize the channels in the SIMHUB interface dedicated to shaker motors. Thanks to the high-performance motor drivers, the Feeling PRO offers better reactivity and dynamic rumble response, and above all zero background noise. We’ve integrated new, versized drivers to maximize motor acceleration, making high-frequency effects like road bumps and gear kicks much sharper and more defined. Configure and adjust each channel to obtain tactile feedback tailored to your driving experience.

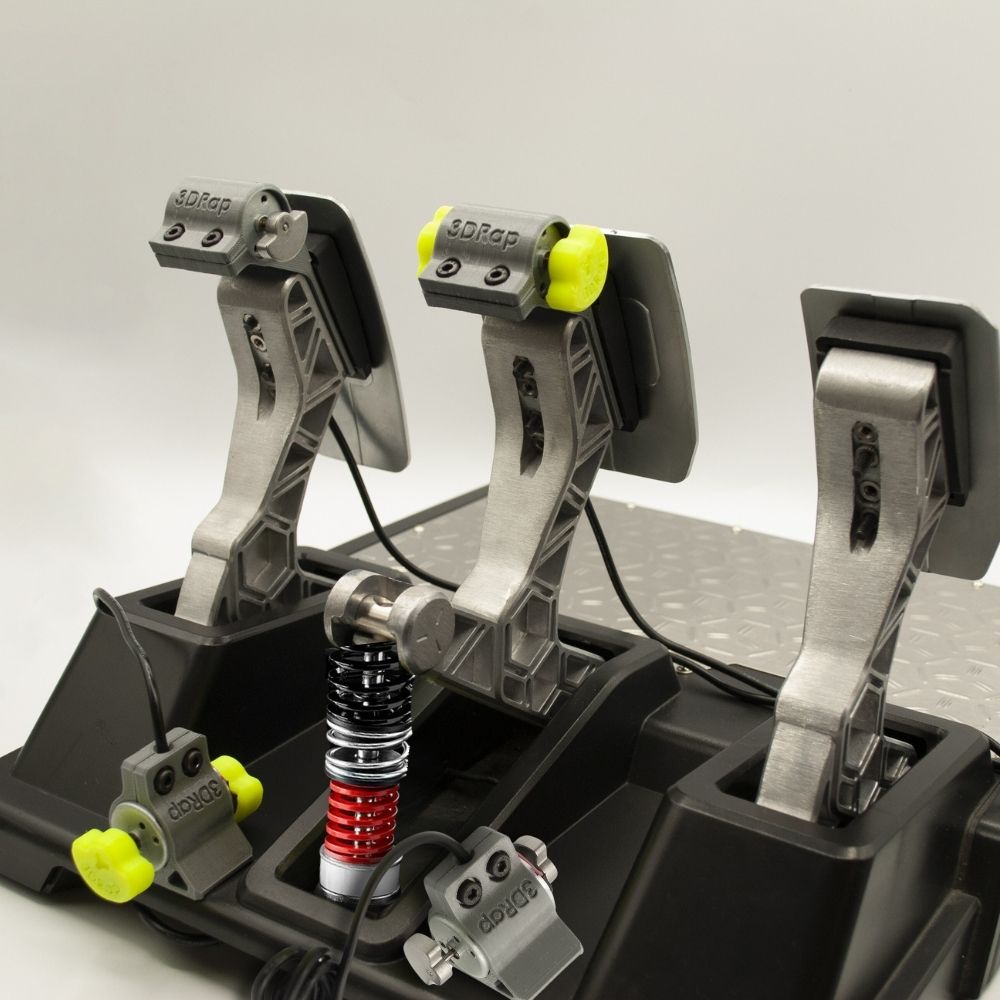

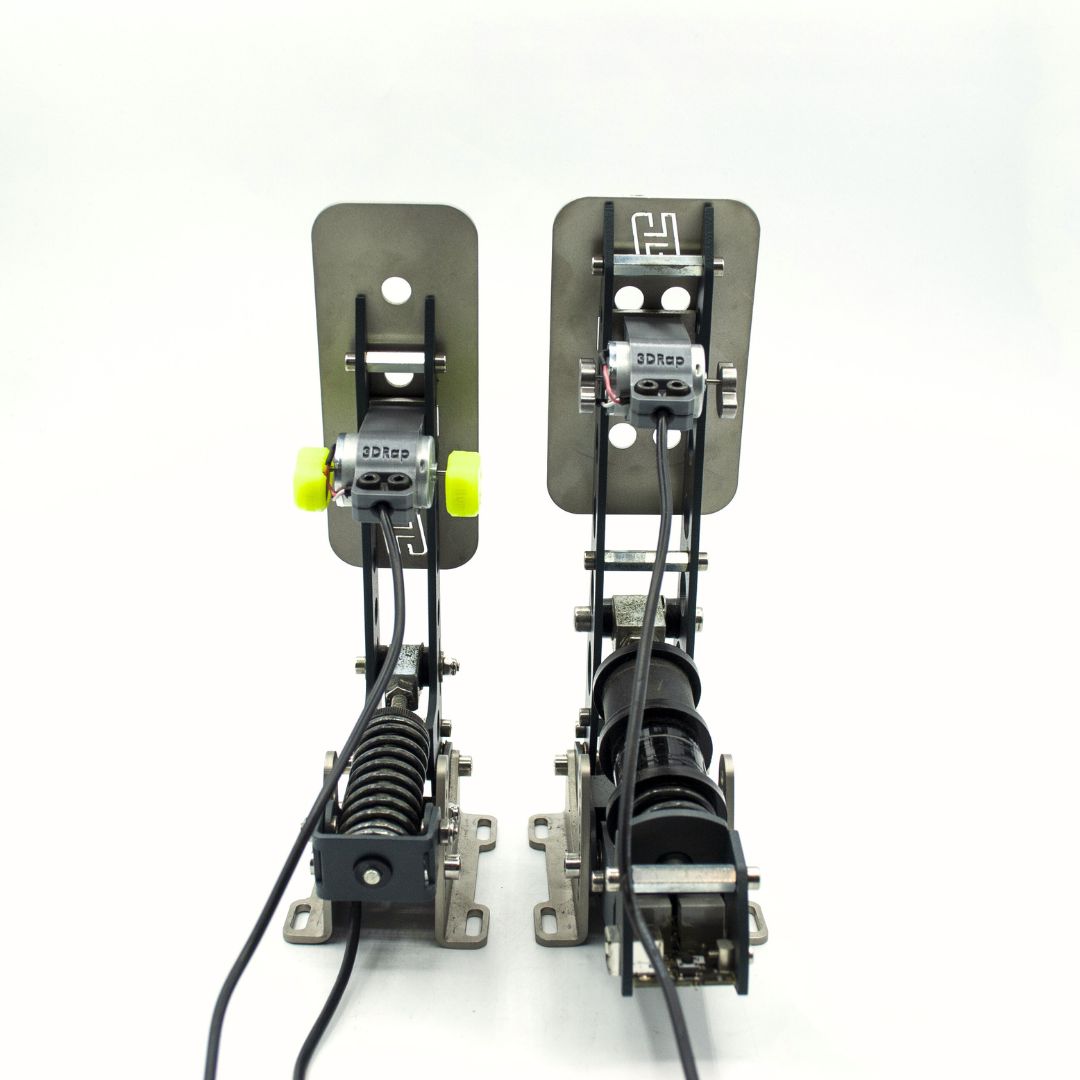

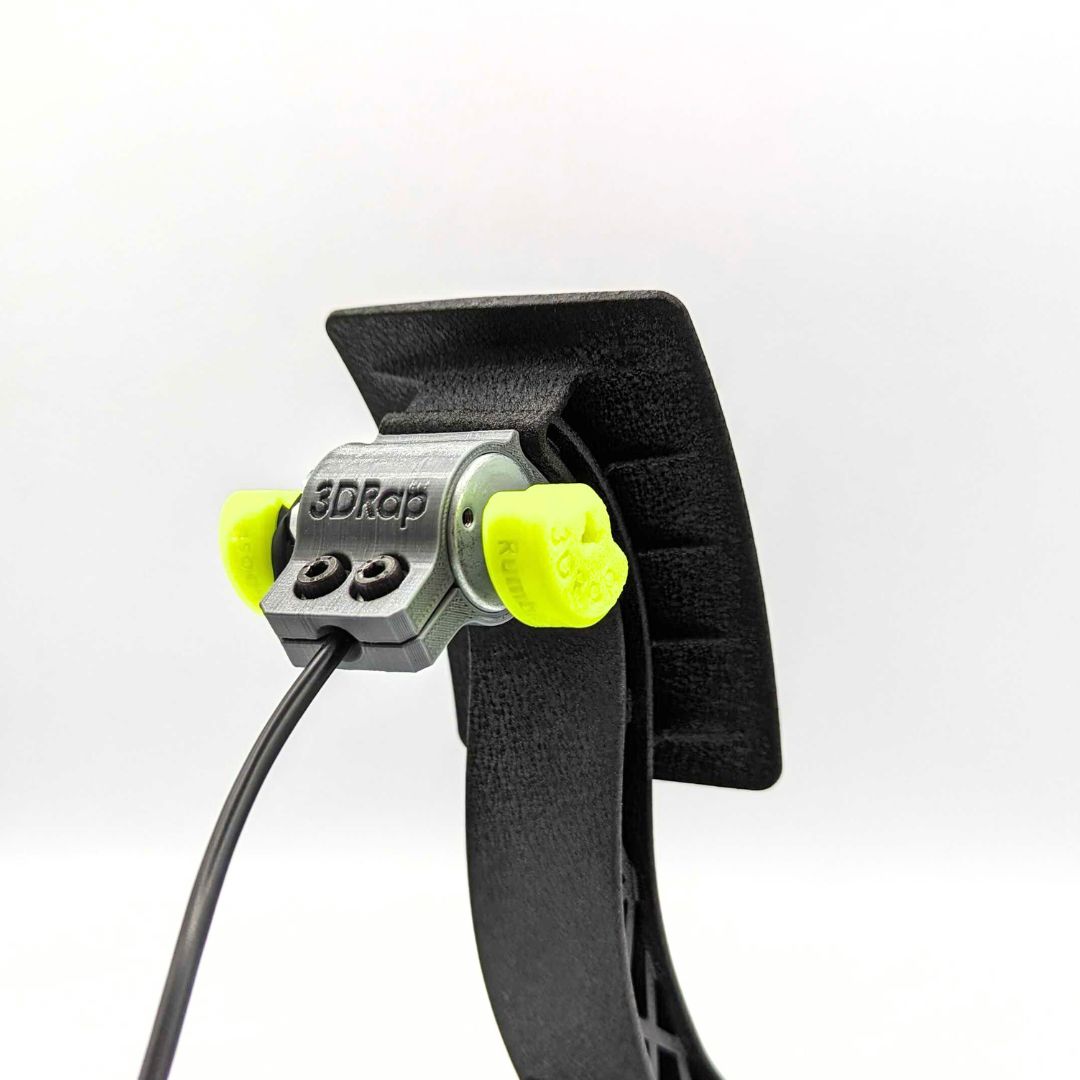

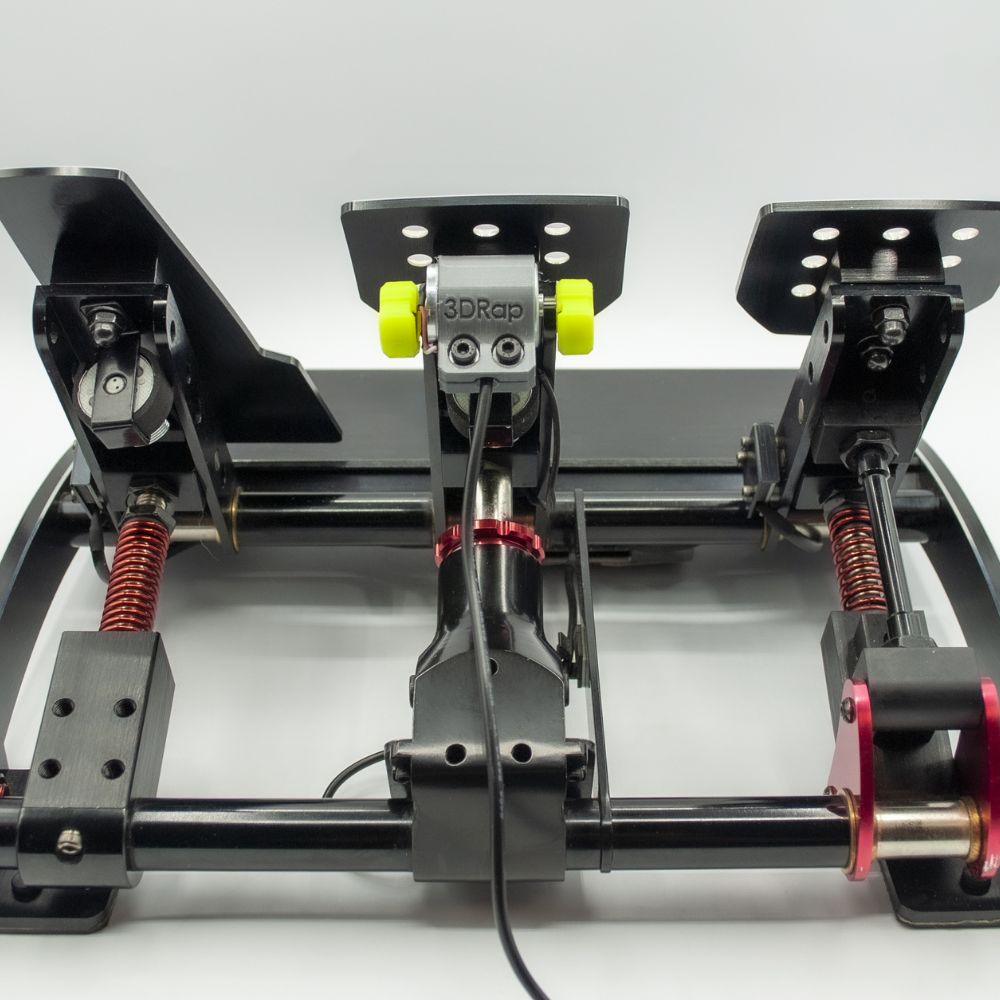

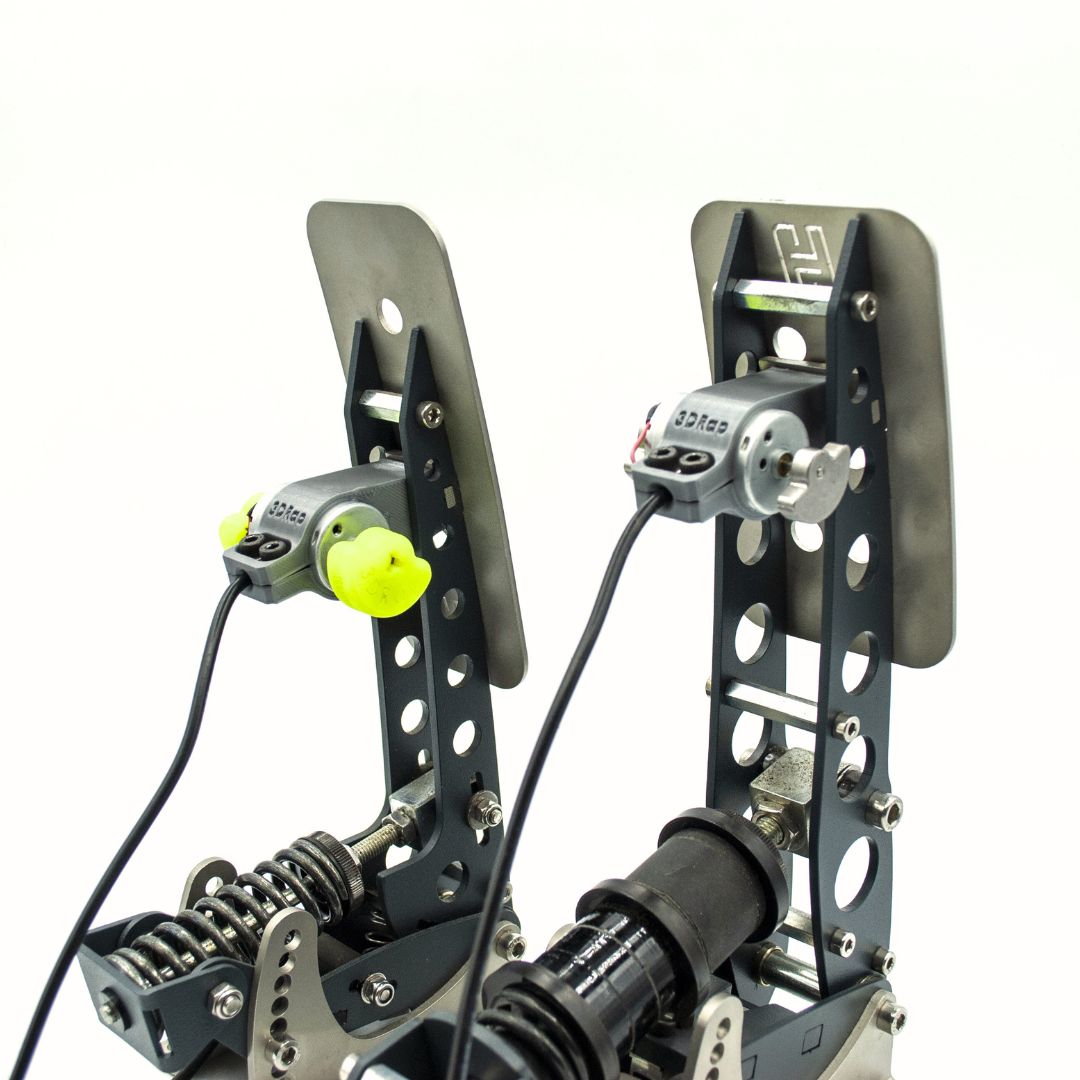

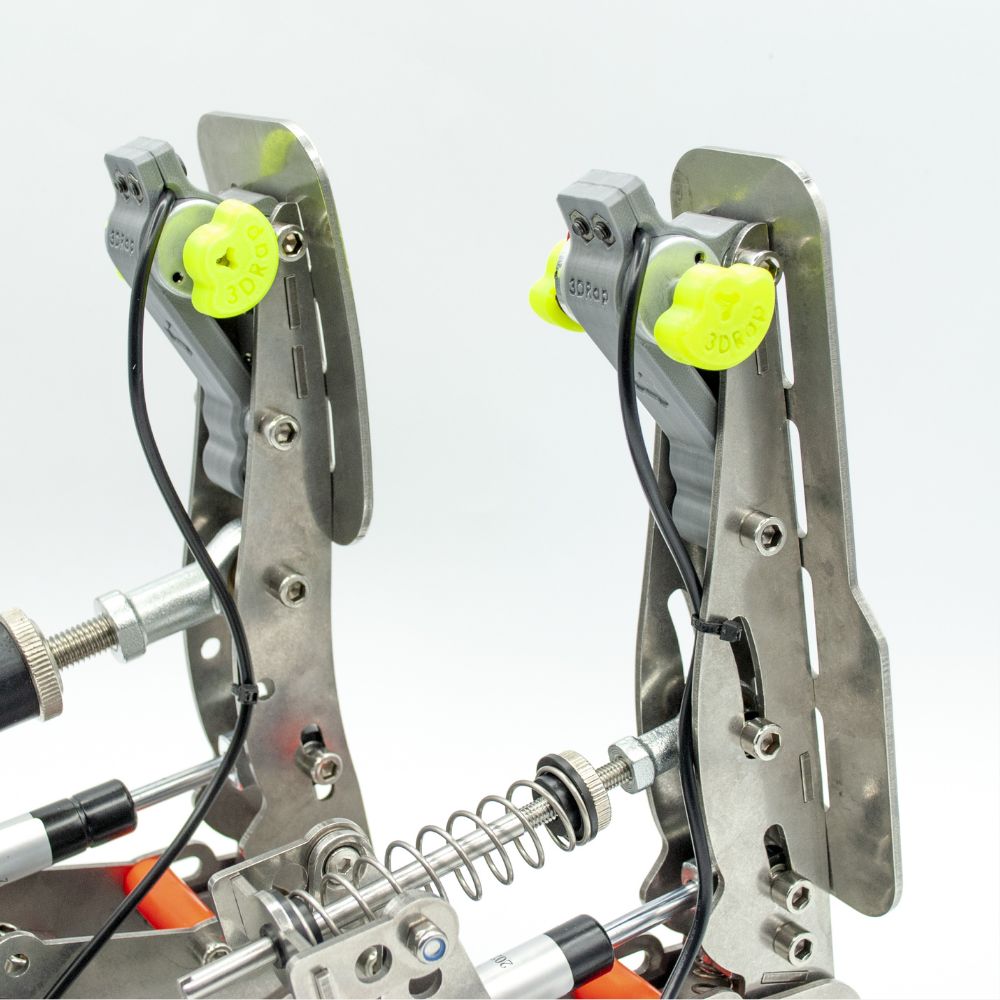

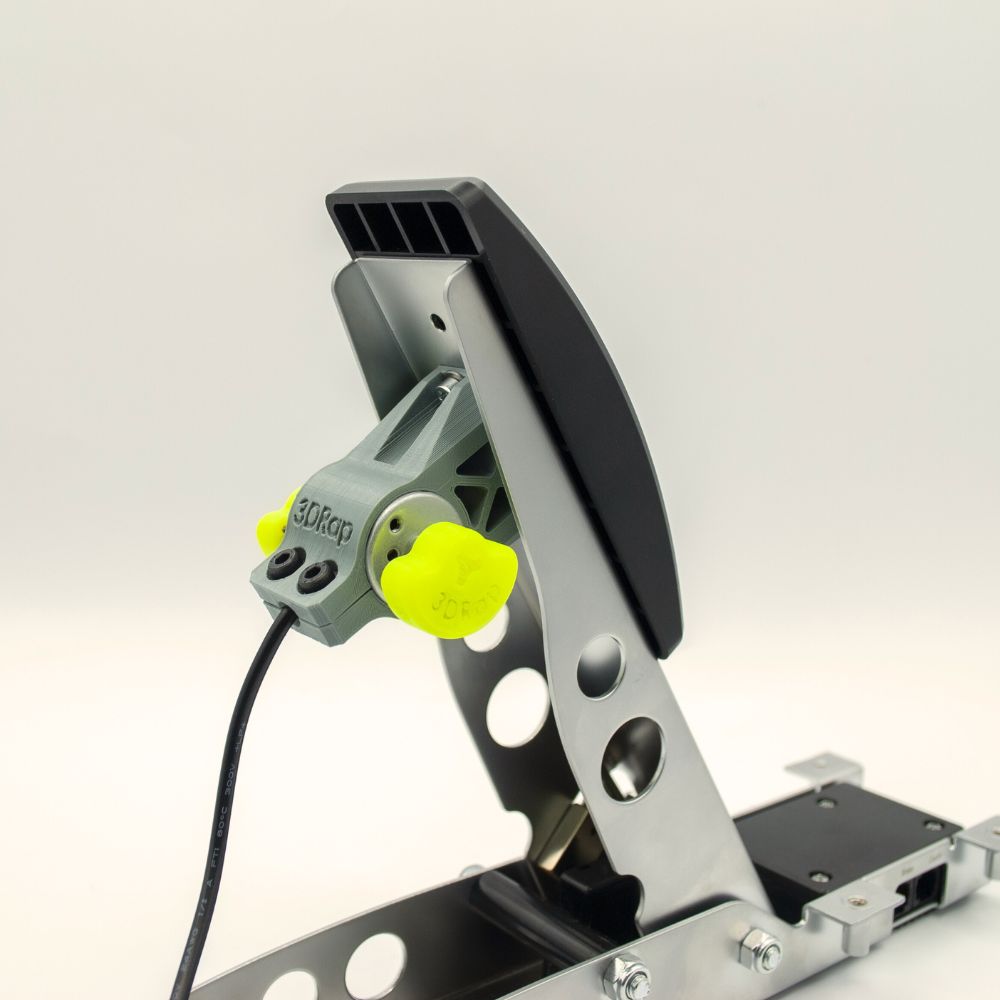

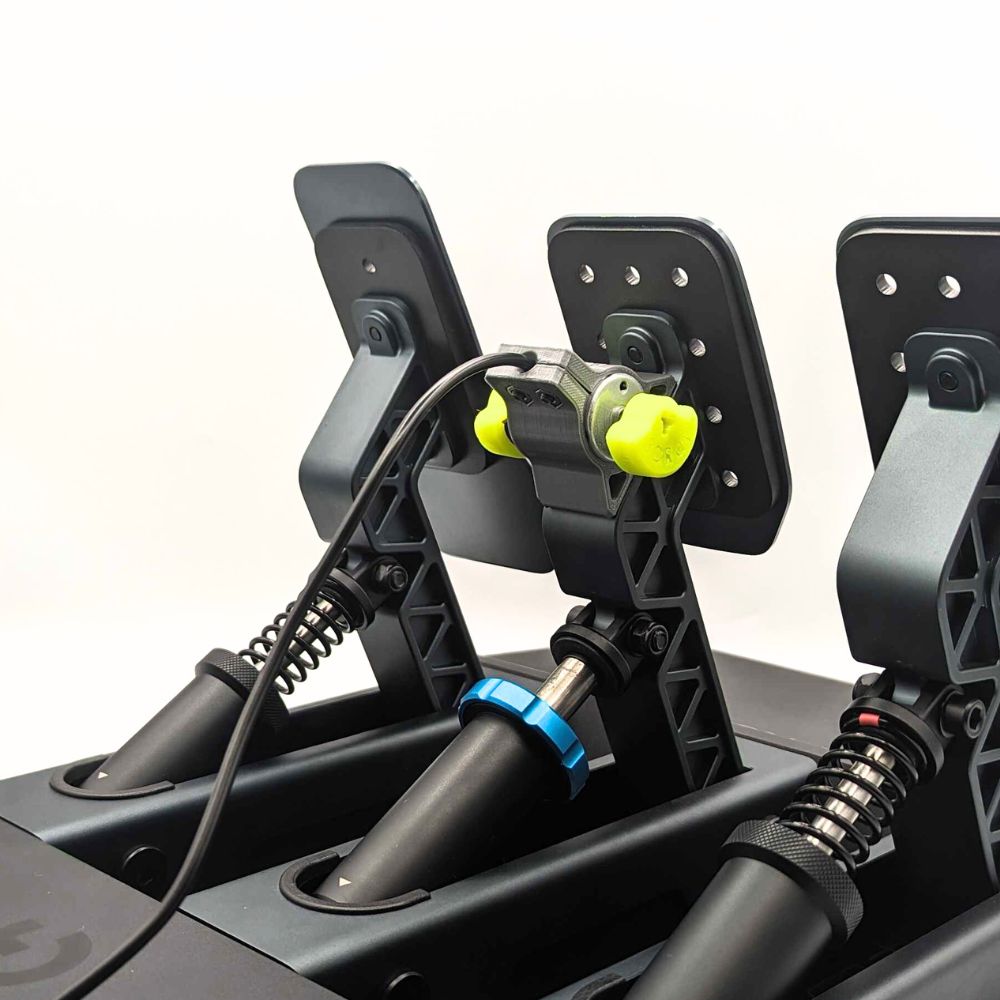

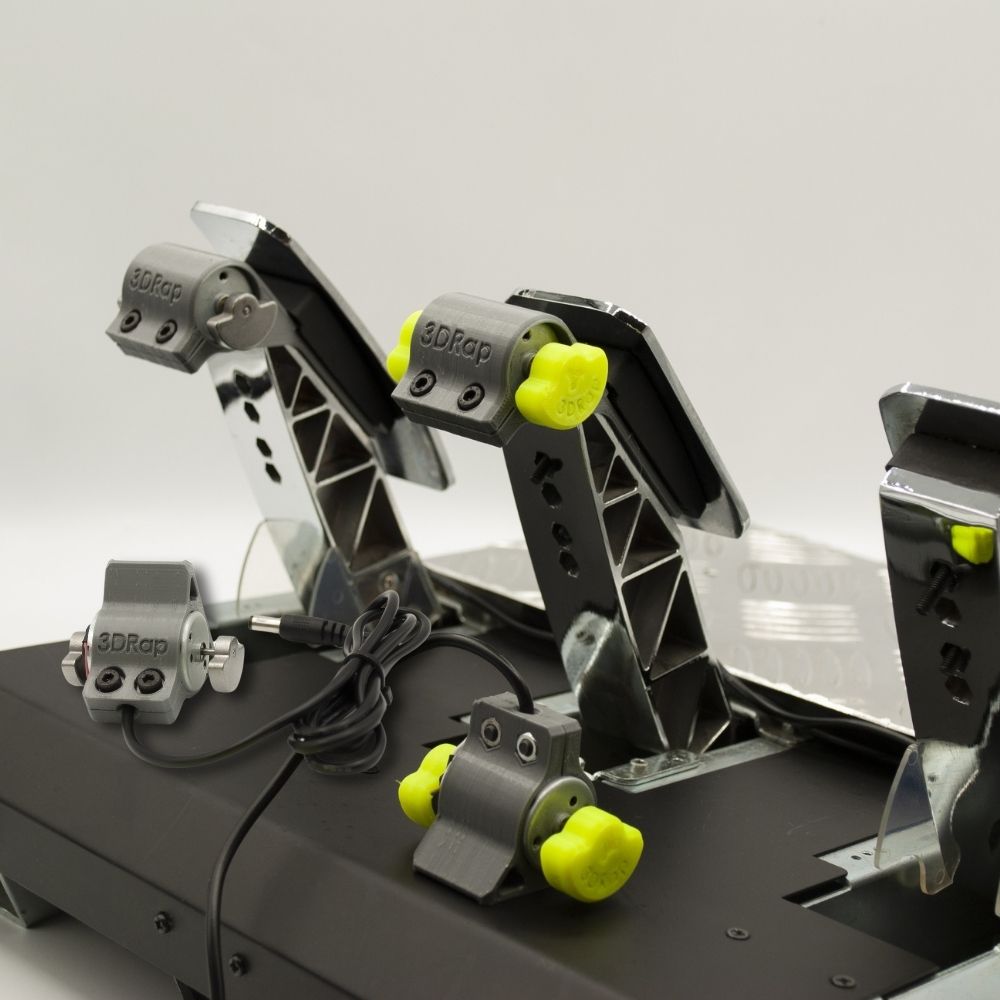

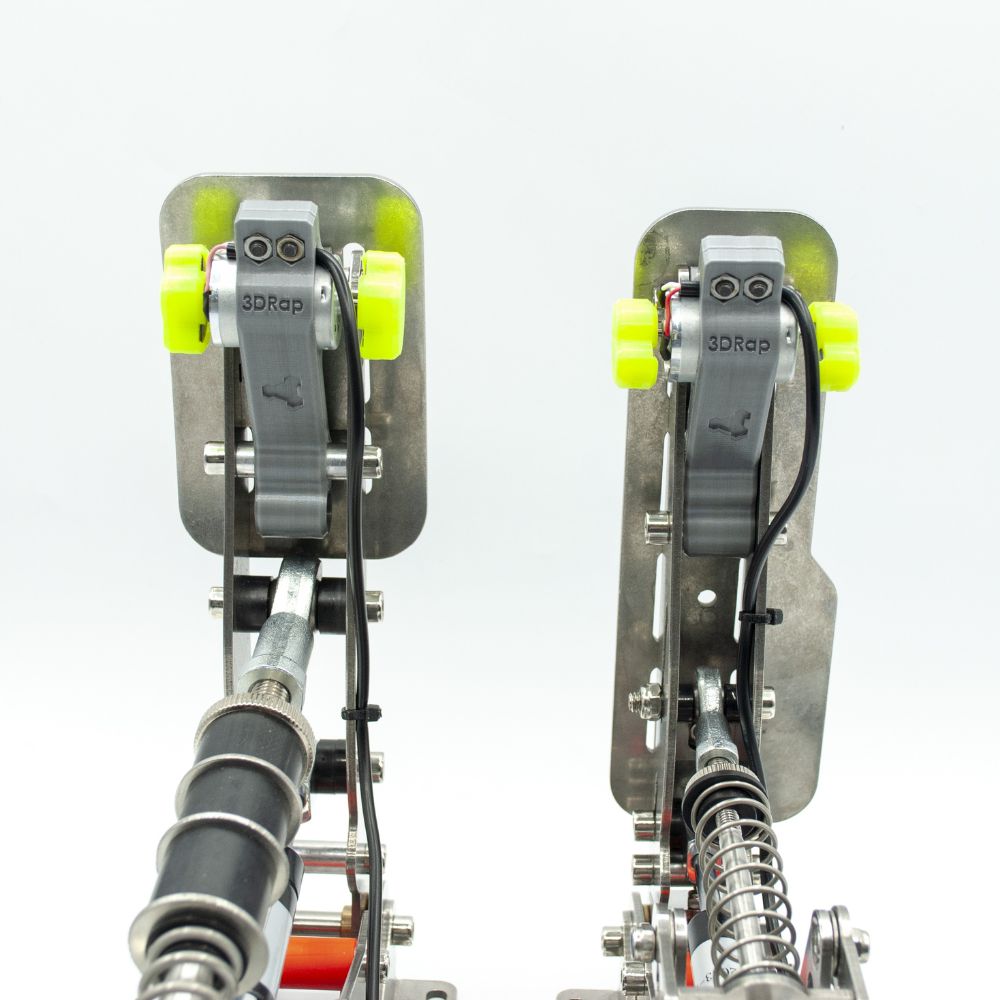

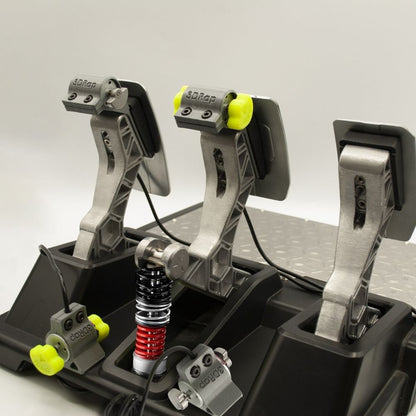

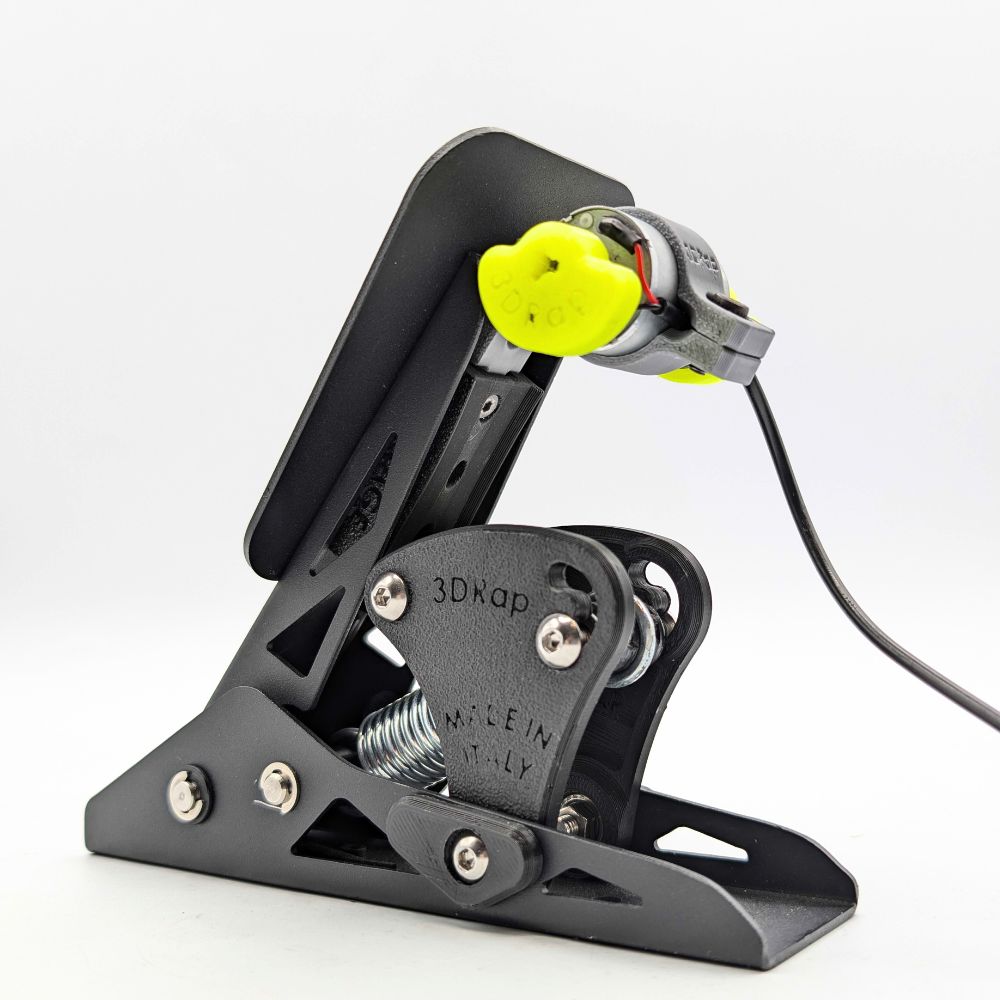

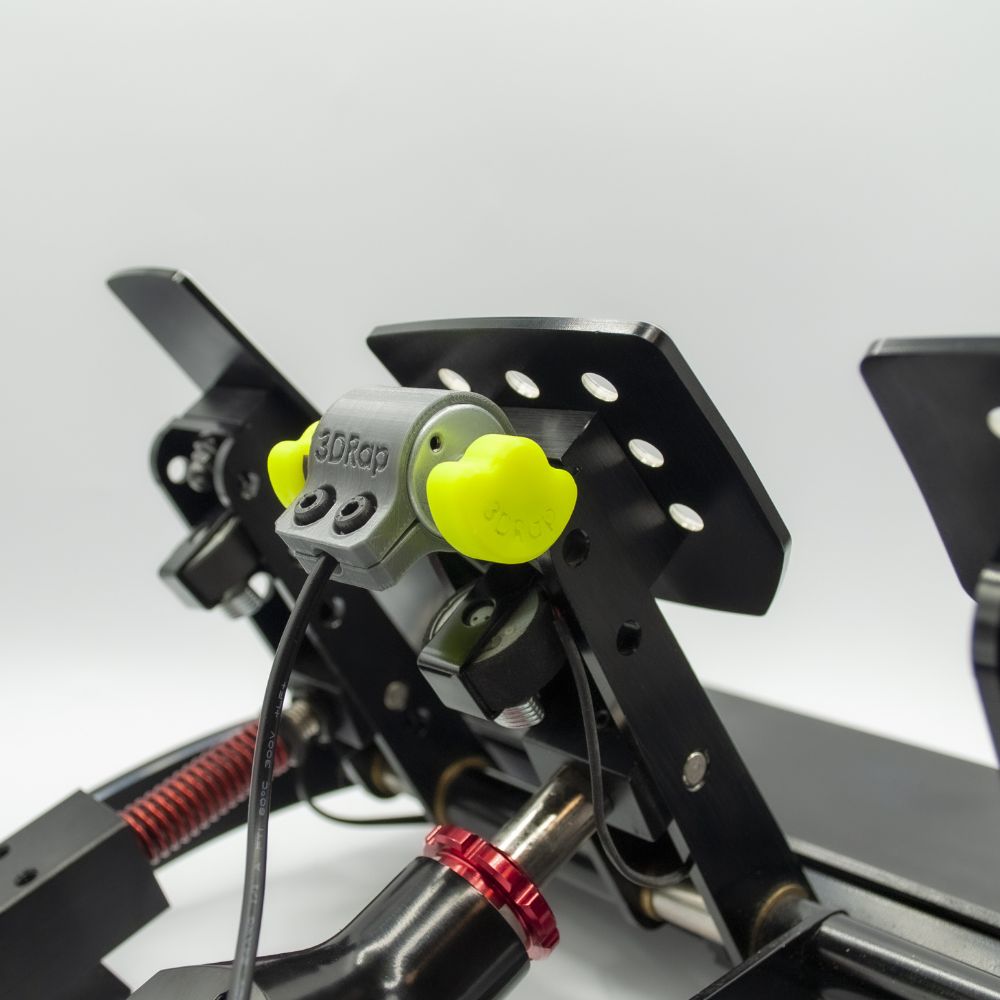

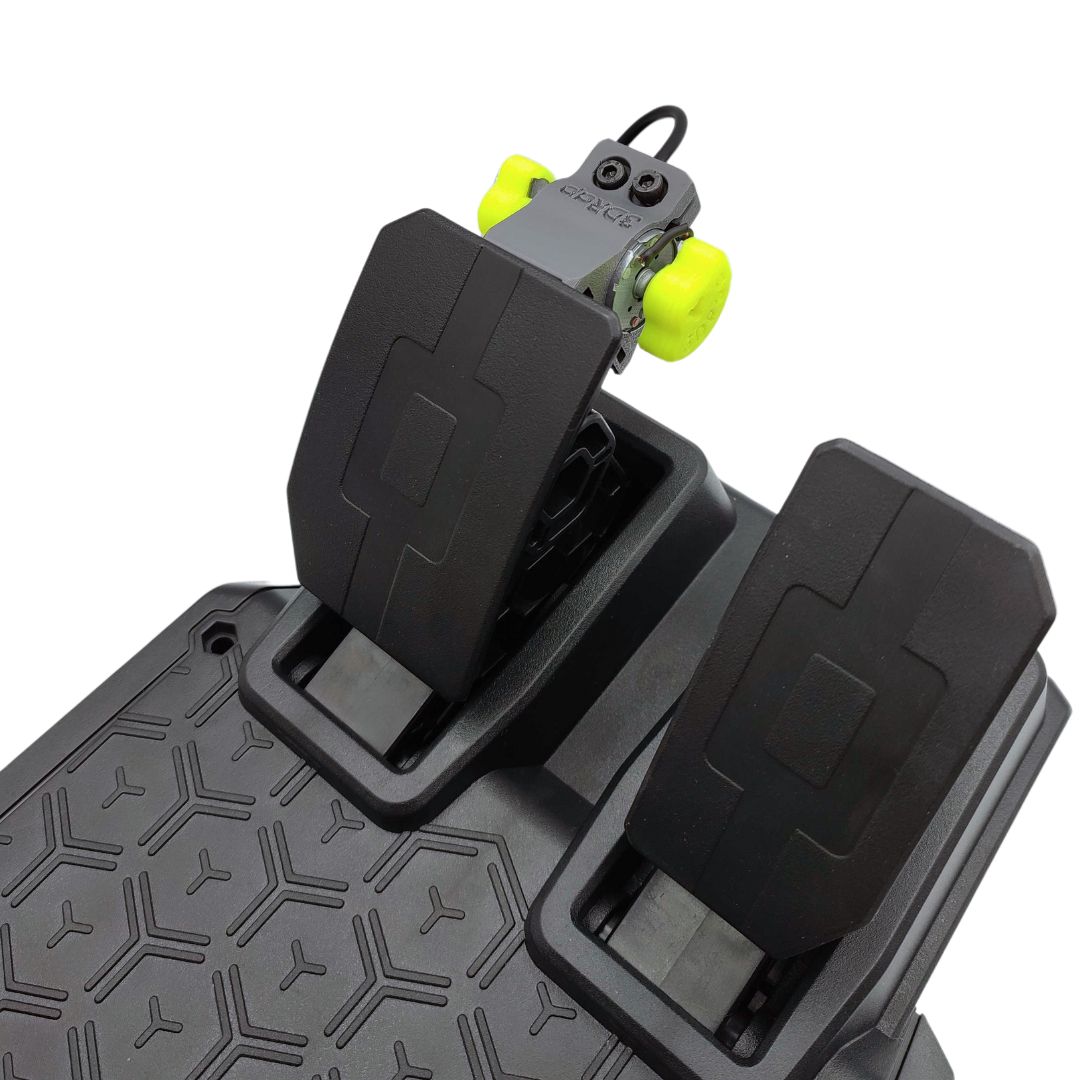

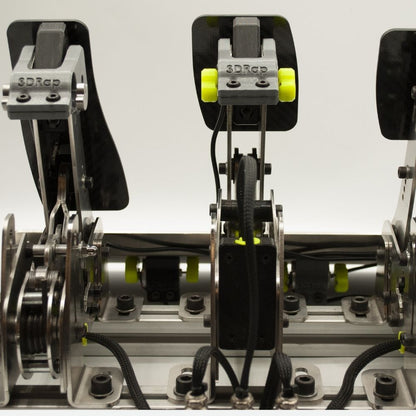

  • Easy Mounting on various Pedals: Compatible with various pedals, including 3DRap nGASa, Logitech G25/G27/G29/G920/G923/G Pro, Thrustmaster T-LCM, T3PA, T3PA Pro, T2PM, RaceLine, DC Simracing DC1/DC2/DC3, Fanatec CSL, CSL Elite V2, Club Sport V2 / V3, MOZA SR-P Lite, SimJack Pro, Heusinkveld, CAMMUS CP5, CAMMUS LC100, SimRuito, Simucube Throttle, Alien Pedals Racing. Thanks to universal rumble motors, compatibility can be extended to virtually all pedals on the market.
  • Freely Positionable Universal Rumble Motors: universal motors can be fixed to various areas of the simracing setup, expanding customization possibilities and delivering an immersive driving sensation on any pedal set. They can also be attached to any type of tubular frame, such as those on the popular PlaySeat Challenge, Trophy, and Next Level Racing GT LITE racing seats.
  • Plug and Play Eccentric Weights: the included eccentric weights are plug and play, allowing greater customization of the kit. Position them freely on the motors to achieve the desired sensation, adapting it to your preference or the simulated vehicle type.
  • Combining redundant weighted and weightless rumbles allows for a realistic “beating” vibration effect, ideal for simulating loss of traction.

  • Customizable Configuration: leverage the flexibility of the 3DRap kit to configure your simracing experience. Mount two motors on the accelerator and brake and the other two on the base, add weights to one of them for a hybrid vibrating effect, and personalize your experience as desired.
  • SimHUB Compatibility with Included Presets: maximize your 3DRap Feeling PRO with SIMHUB compatibility. 3DRap provides ready-to-use presets; just import them into SIMHUB for an immediate and personalized experience. Full compatibility from SimHub 9.5.4 onwards.
  • External 12-Volt Power Supply: with the included 12V external power supply connector, ensure your kit is always ready to deliver optimal performance during your driving sessions.

For PlayStation and XBox


The 3DRap Feeling PRO is also compatible with consoles like PlayStation and XBox. To take full advantage of the Feeling PRO features on simulators like Project Cars and Gran Turismo 7, you only need to use a computer with SimHub and a WiFi connection. This allows you to enjoy the full Feeling PRO experience on console platforms. For a detailed guide on how to set it up, you can check out the tutorial video on the GT Realm YouTube channel.

Video Tutorial

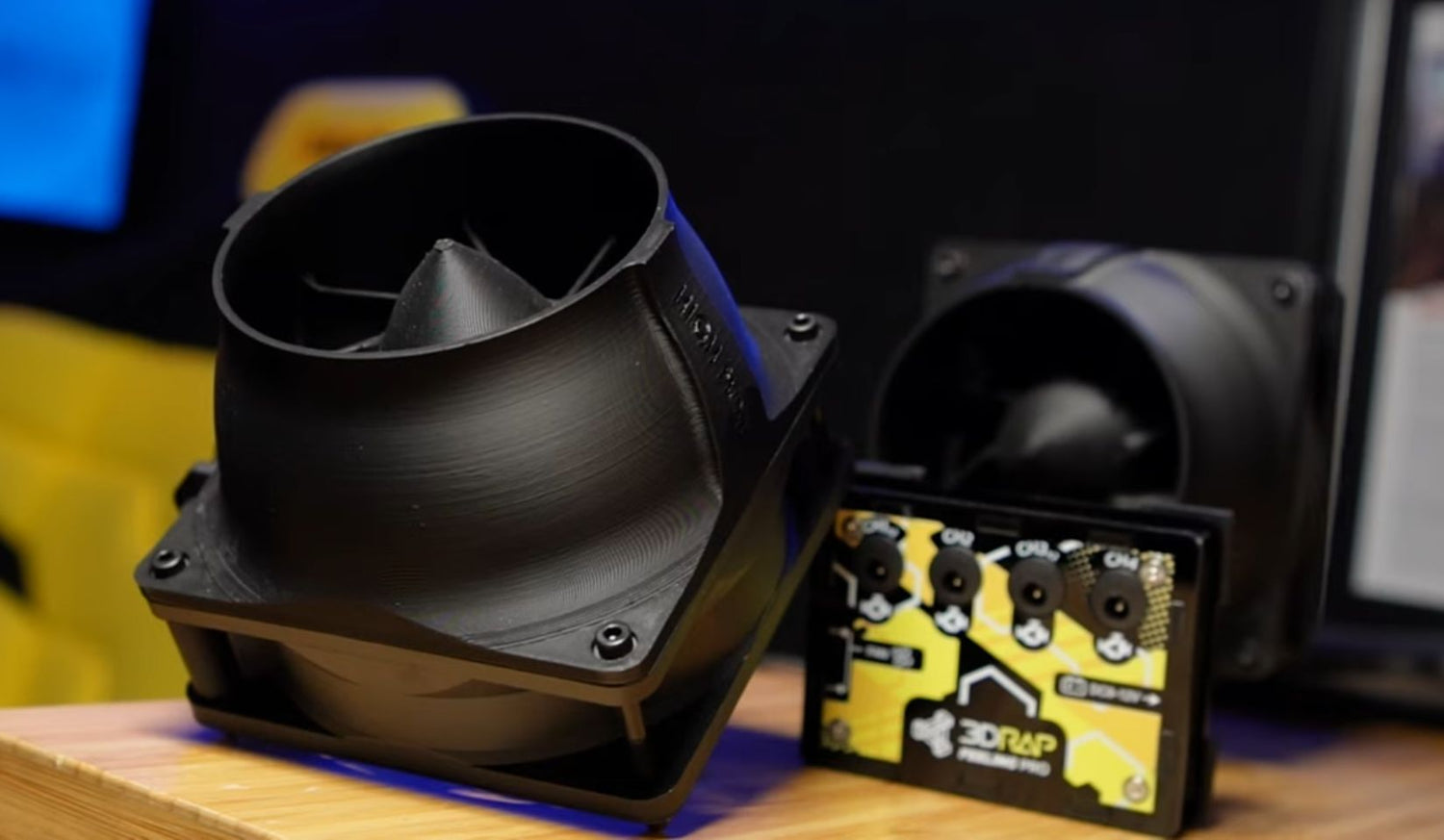

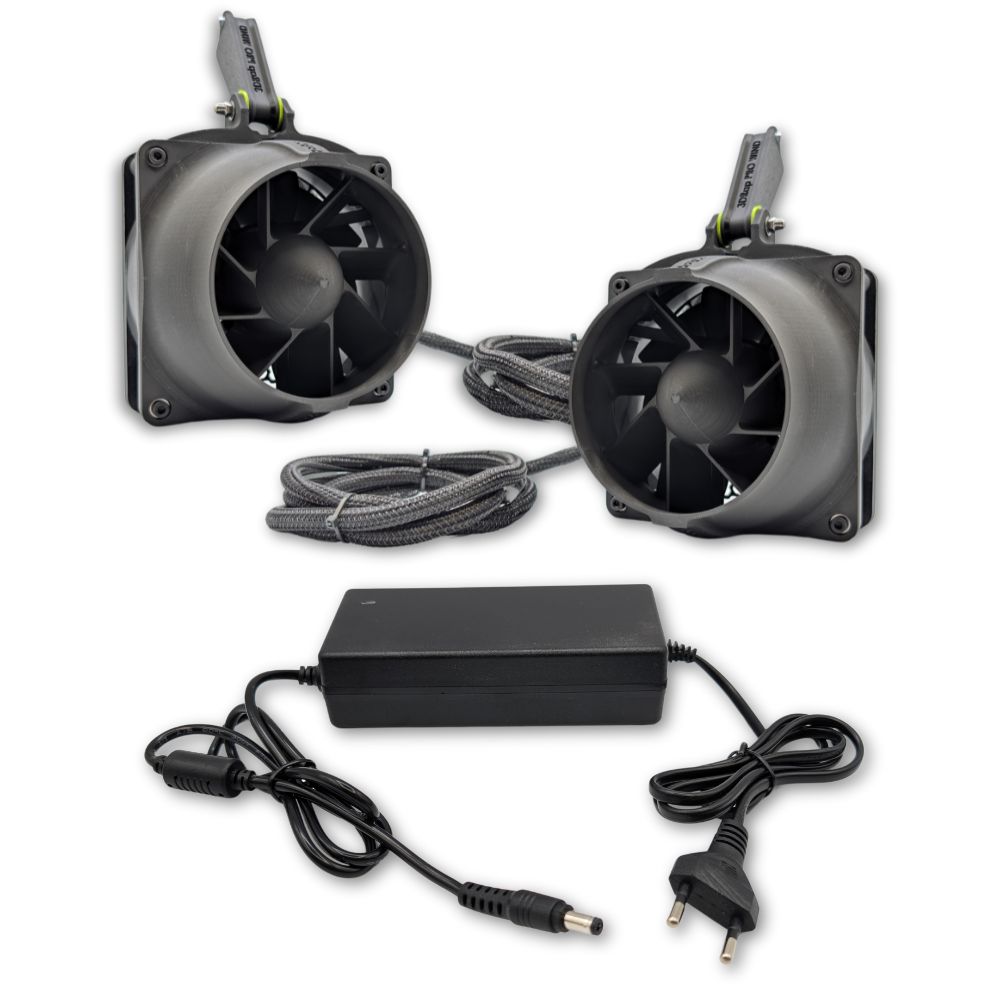

Wind Generators

  • Power: 120x38mm fans were chosen to have a good amount of power available;

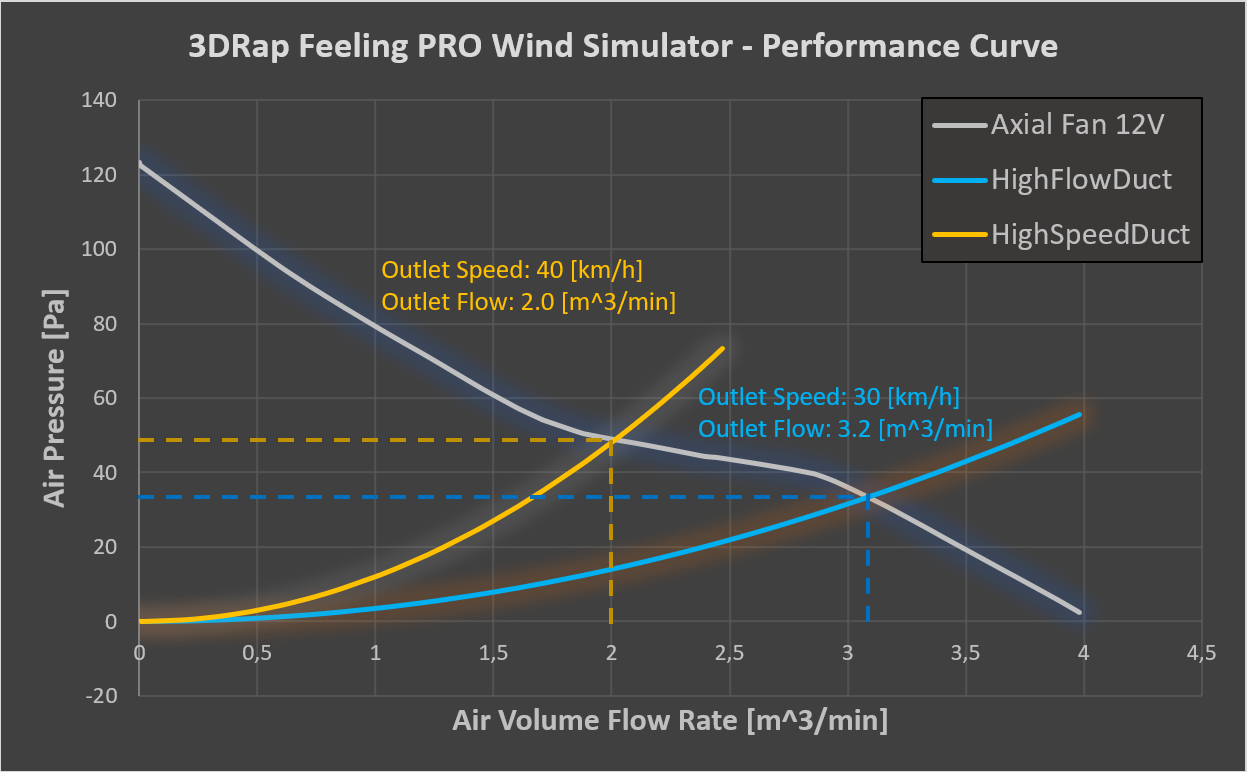

  • Flow: the conveyor was designed through fluid dynamics analysis to maximize the flow rate, the flow speed and the efficiency of the fan, ensuring optimal performance levels for the simulation. A high-quality 3D printing technology was used to maximize the surface finish of the conveyor elements by reducing air resistance.

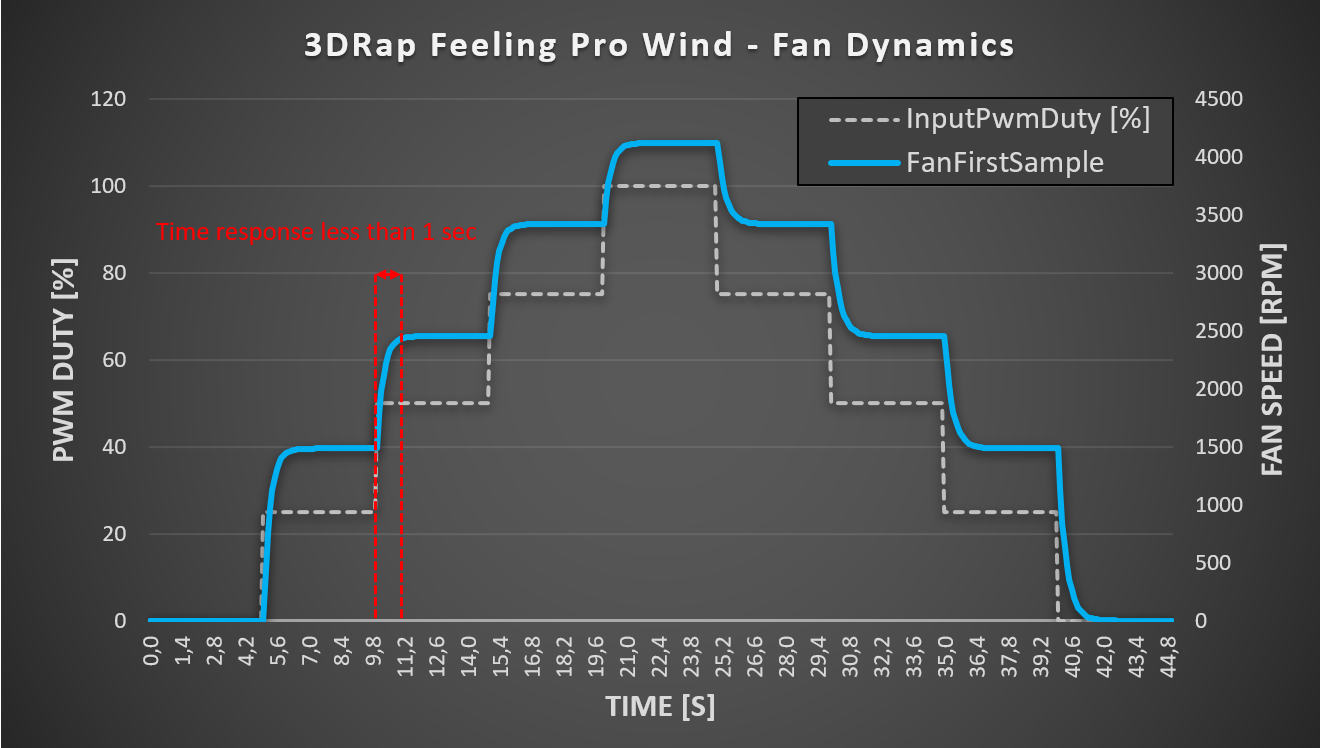

  • Modulation: PWM-controlled fans were chosen, designed specifically for the project specifications; unlike the most common DC continuous power fans, PWM-controlled fans guarantee perfect modulation of the air flow with respect to the speed of the car.

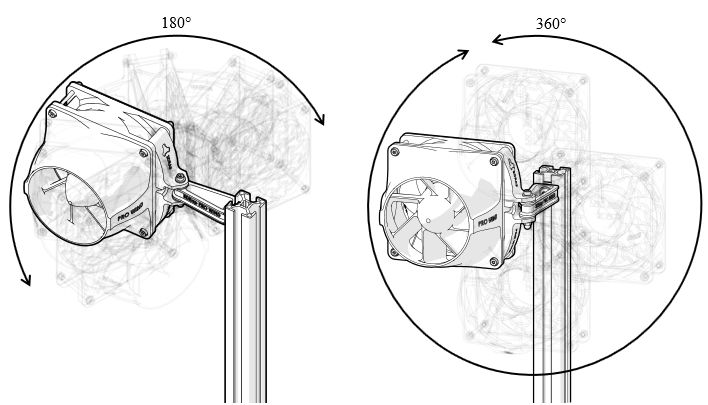

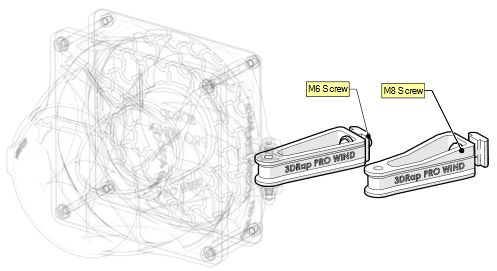

  • Installation flexibility: thanks to the double provision for M6 and M8 nuts and the two degrees of freedom of adjustment, it is possible to satisfy every installation requirement.

SimHUB Configuration

3DRap provides ready-to-use presets; just import them into SimHUB for an immediate and personalized experience.

Download Presets

FAQ

I have the old version: 3DRap Feeling Upgrade. Can you help me?

Look here:

- WIRING AND SIM HUB CONFIGURATION

- HOW TO FIX "ZERO MOTORS CONNECTED" MESSAGE

Why do the fans turn on by themselves and blow?

In the absence of USB signals, the fans will spin to signal the need to turn off the power supply; turn off the power to turn off the fans.

Can I use 8 Rumble motors by purchasing a splitter cable for each channel?

It is not authorized to use a number of rumbles higher than that indicated for each channel. Improper use of the channels can cause overloading of the motor drivers with damaging effects for the electronic board and the power supply.

Is it possible to split a channel more than once?

It is not possible to split a channel more than once. A maximum of one splitter is authorized for each channel that is intended to be split (marked with x2).

Is it possible to use the 3A power supply for more Rumble motors or fans than listed?

It is not possible to use the 3A power supply outside the specifications reported. The appropriate combinations are suggested to safely use the 3A power supply avoiding excessive absorption. To increase the number of Rumble or Fans you need to get an oversized power supply or buy it in a kit with the Pro Upgrade.

Where can I mount generic rumbles?

Generic rumbles can be mounted anywhere on the cockpit: you can purchase an extra cable sold as an accessory by 3DRap with a length of 1 m to extend the wiring from the control unit to the positioning point of the Rumble.

How does the breakdown assistance policy work? Is the product under warranty?

In the event of a fault, the company reserves the right to carry out a check directly on the malfunctioning product; outward shipping is paid by the buyer. The electronic control unit must not be opened to avoid violating the warranty. If the damage is due to a defect, the repair and shipping will be borne by 3DRap, otherwise there will be a flat rate cost to be paid by the user of €39.00.

Is it possible to open the electronic box in case of malfunction without violating the warranty?

No. Once the box is opened, the guarantee seal will be broken. From that moment on all repair costs are the responsibility of the buyer.

I hear a little hum from the Rumble Motors, is this normal?

It is a normal behavior: it depends on the voltage commanded to the motor.

DISCLAIMER

How does the breakdown assistance policy work? Is the product under warranty?

In the event of a fault, the company reserves the right to carry out a check directly on the malfunctioning product; outward shipping is paid by the buyer. The electronic control unit must not be opened to avoid violating the warranty. If the damage is due to a defect, the repair and shipping will be borne by 3DRap, otherwise there will be a flat rate cost to be paid by the user of €39.00.

The company will not be held responsible for any improper use of the product. Some circumstances are listed:

  • Power supply overload: the customer decides to go beyond the recommended combinations for using the 3A power supply, for example by adding more rumble motors than the maximum possible or more fans than the maximum possible;
  • Channel overload: the customer connects more motors than the maximum allowable for each channel;
  • Incorrect fan connection: the customer inserts the fan connectors in reverse.

Precautions for using the Wind Simulator

  • The product is supplied with a protective grille to avoid direct contact with the fan impeller; always make sure that the grille is in good condition so that it can perform its function;
  • Instructions for starting the 3DRap Pro Wind: it is recommended to establish the USB connection before powering the Pro Upgrade board;
  • Instructions for turning off the 3DRap Pro Wind: it is recommended to disconnect the power supply before interrupting the USB connection;
  • The above instructions are intended to improve the reliability of the product and ensure safety during use: in the event that the device is powered in the absence of USB signals, the fans start to operate to
    signal the need to interrupt the power supply. The fans will turn off once the power supply is interrupted.
