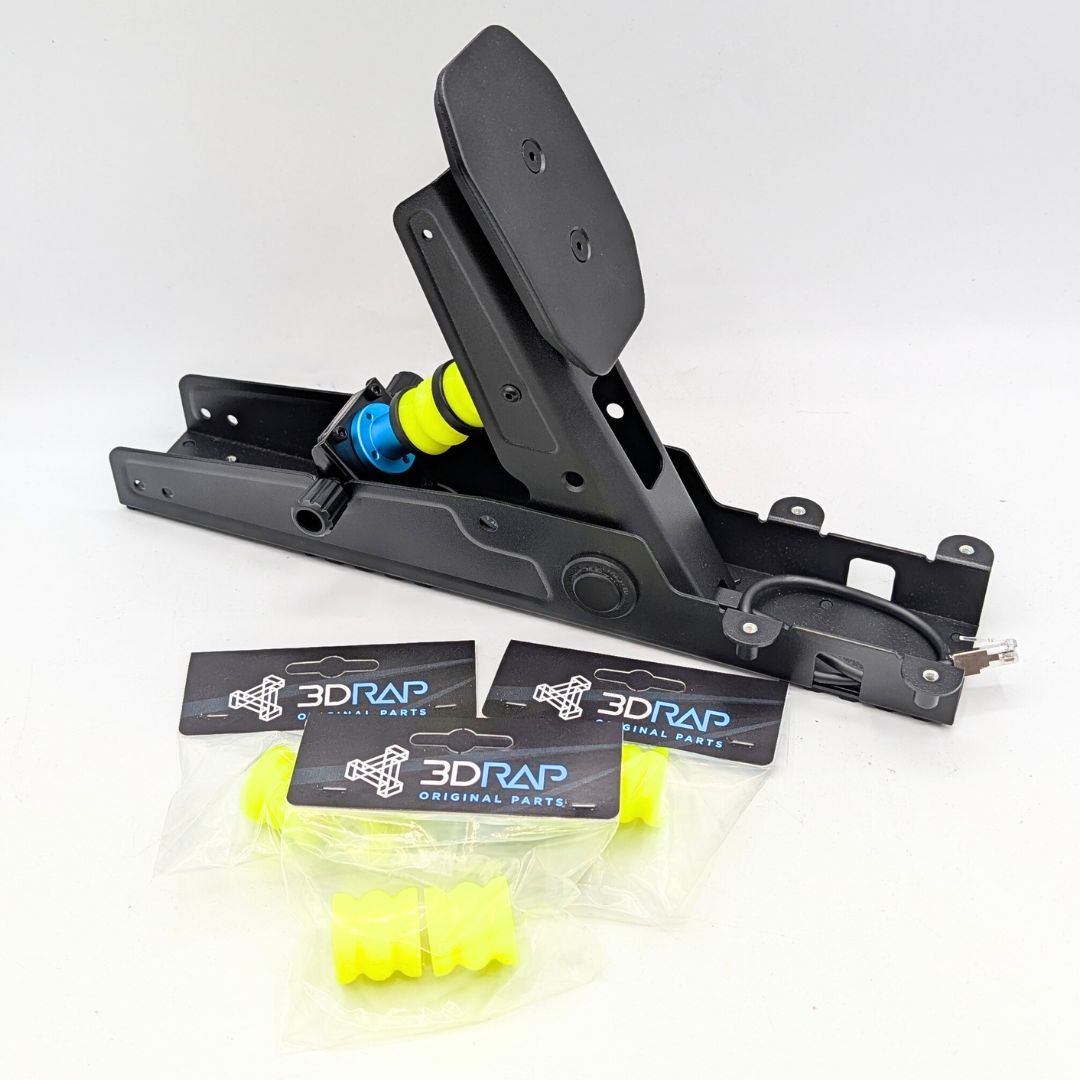

Logitech RS Pedals – Elastomer Brake MOD [R Series / RS50]

This Brake MOD increases the realism and performance of the load cell on the Logitech RS Pedals (R Series), for RS50 System. Allows various effects adjustments and completely improves the way you brake!

Whether you are braking hard or braking lightly, the original setup will allow for inaccurate modulation. The foot will not easily feel the intensity of the force applied to the pedal.
Thanks to our Brake MOD, the brake pedal will become similar to that of a real car: the greater the pressure on the pedal, to obtain more intense braking, the harder it will become.

• This effect helps you a lot during long racing sessions, when the leg loses much of its sensitivity and in the most difficult braking you are no longer able to dose the pedal well.
• You will avoid locking the wheels.

Brake Mod – Linear to Progressive

The graphic feedback shows how our MOD guarantees a wider range of use, recovers a large percentage of useful travel compared to the original configuration of the Logitech RS Pedals, and corrects the curve ramp.

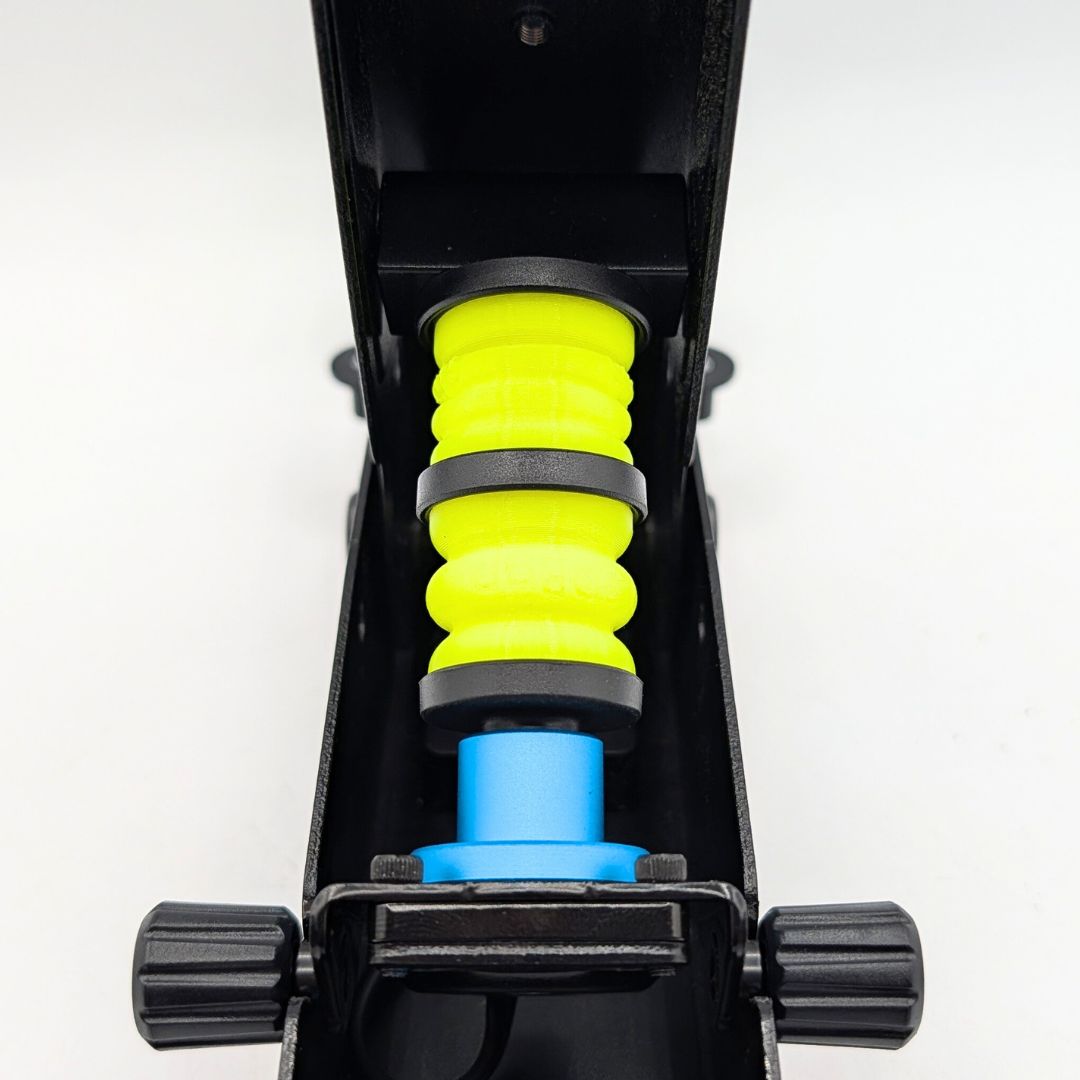

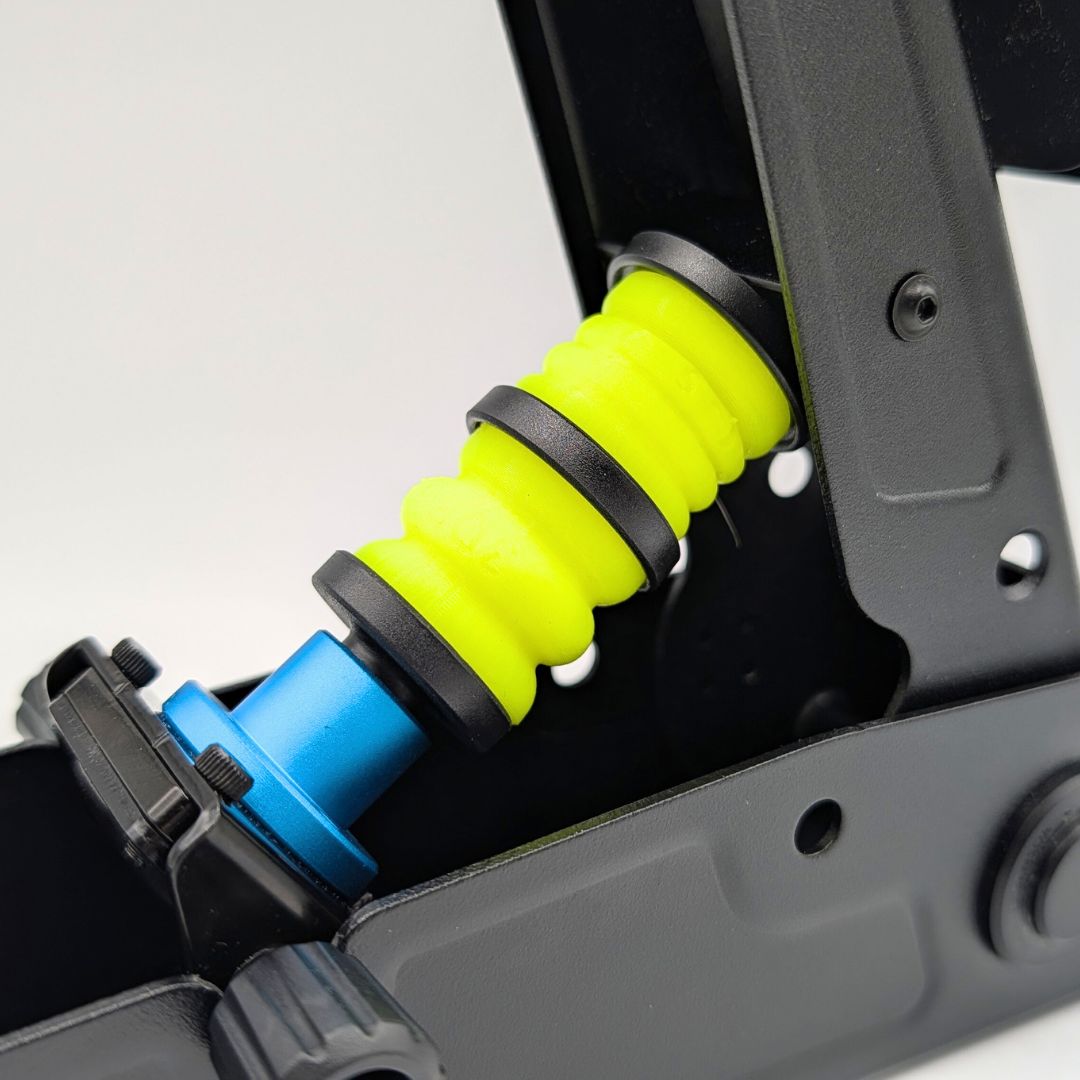

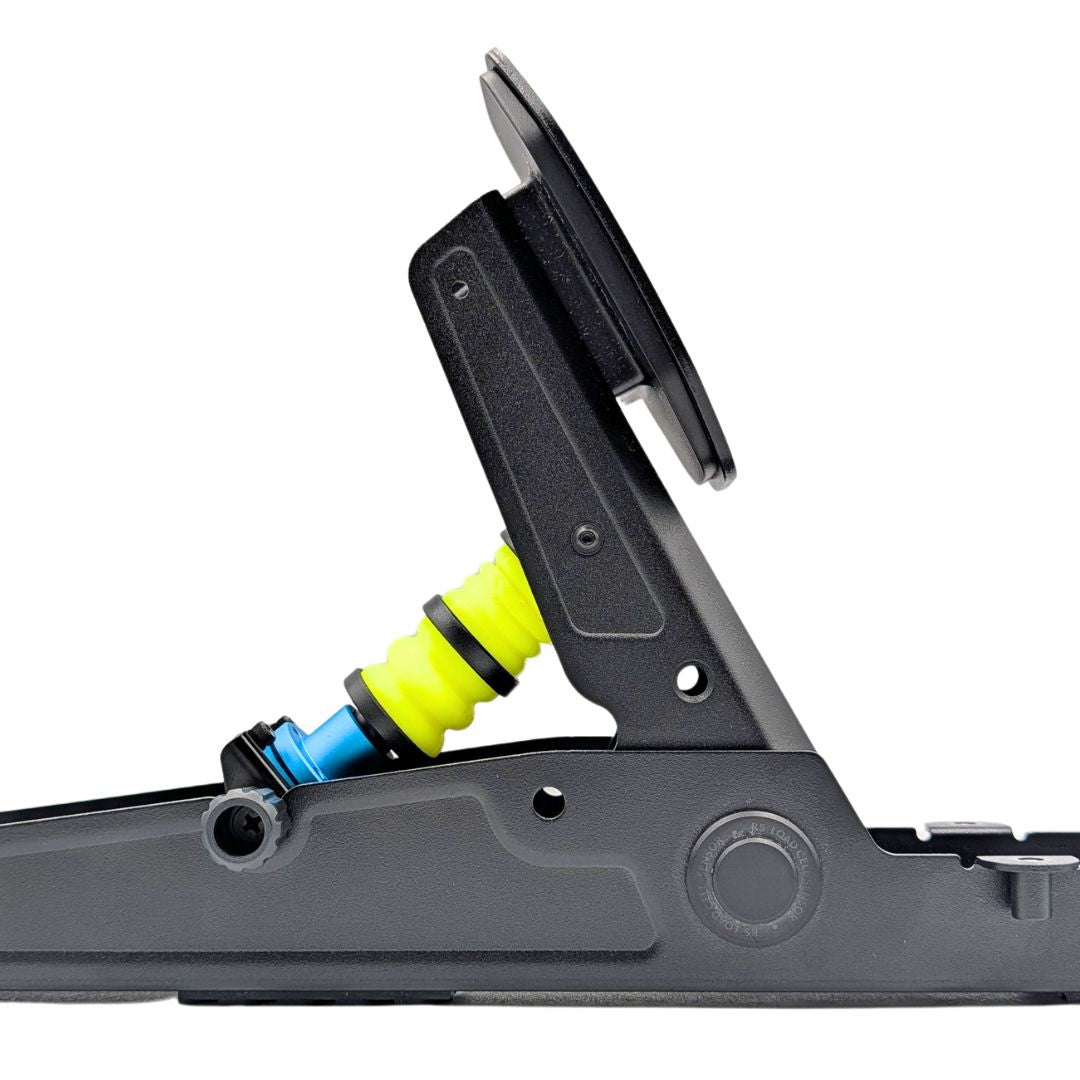

It is possible to use the brake pedal in 3 configurations, combining our elastomers and the inserts supplied by Logitech:

• Linear (with 2 “LINEAR” elastomer), obtaining clear and intense braking. Characteristic of cars with covered wheels (GT, Rally, Drift).
• Progressive (with 2 “PROGRESSIVE” elastomer), obtain a braking that becomes very intense in the final part of the curve, weighing down the pedal more suddenly. Characteristic of slender, light and very performing cars (formula).
• Hybrid (with 1 “LINEAR” elastomer and 1 “PROGRESSIVE” elastomer), obtain an initially linear braking that gradually becomes more abrupt (LMP and Prototypes).

The material

Brake Mods for DC Simracing Pedals are made with a special elastomer, with shape memory.
